Non Conductive Furnace Door Hose

Superior Quality for Multi-Industry Applications

Resistant To High Pressure, High Temperature, And Wear, With Strong Flexibility—Widely Applied In Coal, Petrochemicals, Metallurgy, Mining, Construction, Electricity, And More.

Water Hose

Water Hose

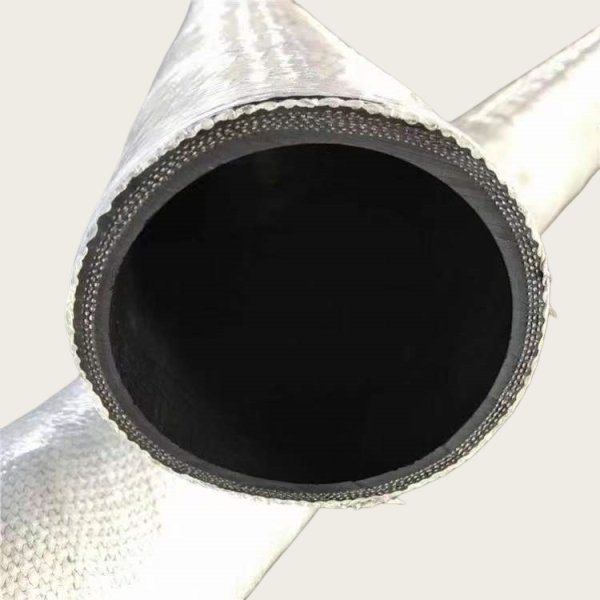

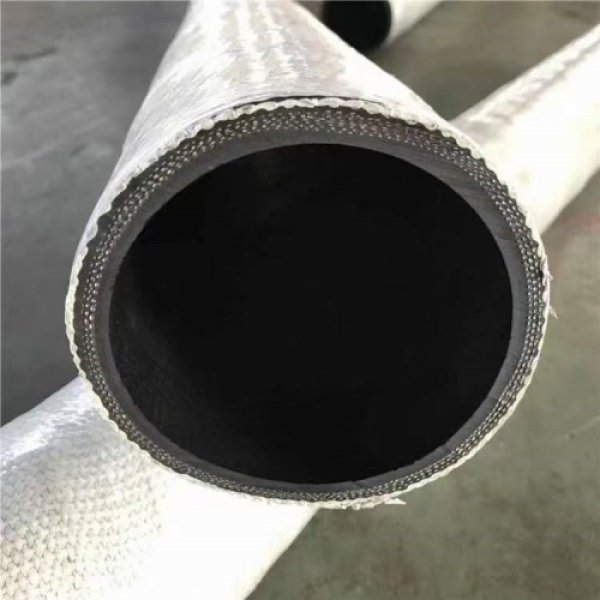

Non Conductive Furnace Door Hose

Construction：
Tube: EPDM,white,smooth and non-conductive
Reinforcement: 2 ply synthetic fabric Cover:Glass fibre ply impregnated with heat and flame resistant synthetic rubber
Application：

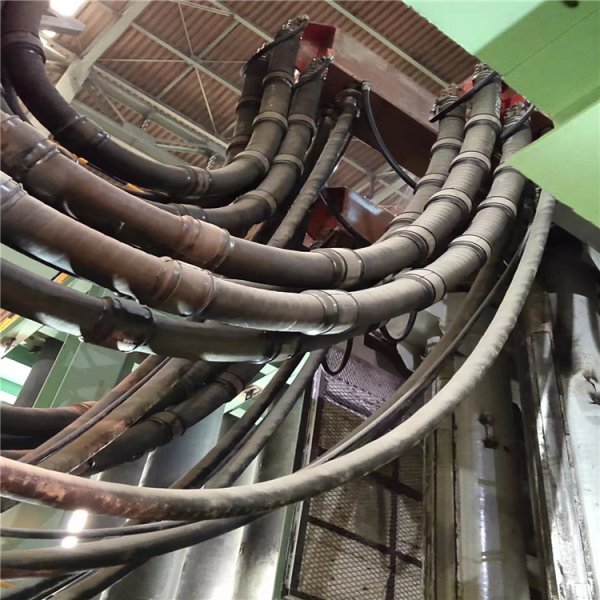

The non-conductive furnace door hose is designed for conveying cooling water to furnace doors in steel mills,glass plants and similar operations.
Temperature：
-40℃(-40°F) to +130℃(+266°F),
Cover to +302℃(+575°F)

Add To Cart

Inquiry

Product Description
Inquiry

Industry Hose

Non Conductive Furnace Door Hose

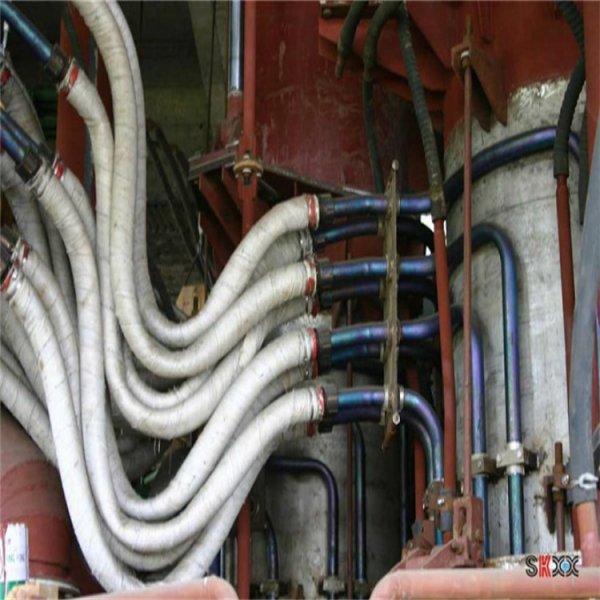

This hose is used as a flexible connector conveying coolant water to convey cooling water to furnace doors in steel mills, glass plants, foundries, or where hose is subject to high temperatures. Available with Nomex or Fiberglass cover. Also available as non-conductive hose for use on electrical furnaces or with stainless steel Armour Guard braids. Large size hose can be made with built-in fittings.

Characteristic:

● Superior heat resistance cover resists heat up to +575°F .
● Resists heat ,open flamee and splashes of white hot metal to +575°F( +302℃).
● EPDM tube is non- conductive.

Standard I.D.		Mean O.D.		Working Pressure				Burst Pressure				Bend Radius	Length
MM	Inch	MM	Inch	PSI		BAR		PSI		BAR		mm	m
13	1/2"	22	0.87	150	300	10	20	580	1160	40	80	104	20
19	3/4"	29	1.14	150	300	10	20	580	1160	40	80	152	20
25	1"	35	1.38	150	300	10	20	580	1160	40	80	200	20
32	11/4"	44	1.73	150	300	10	20	580	1160	40	80	256	20
38	11/2"	51	2.01	150	300	10	20	580	1160	40	80	304	20
51	2	67	2.64	150	300	10	20	580	1160	40	80	408	20
64	21/2"	80	3.15	150	300	10	20	580	1160	40	80	512	20
76	3"	92	3.62	150	300	10	20	580	1160	40	80	608	20
