Resistant To High Pressure, High Temperature, And Wear, With Strong Flexibility—Widely Applied In Coal, Petrochemicals, Metallurgy, Mining, Construction, Electricity, And More.
Construction:
Tube:Black,smooth,NR,SBR rubber compound.

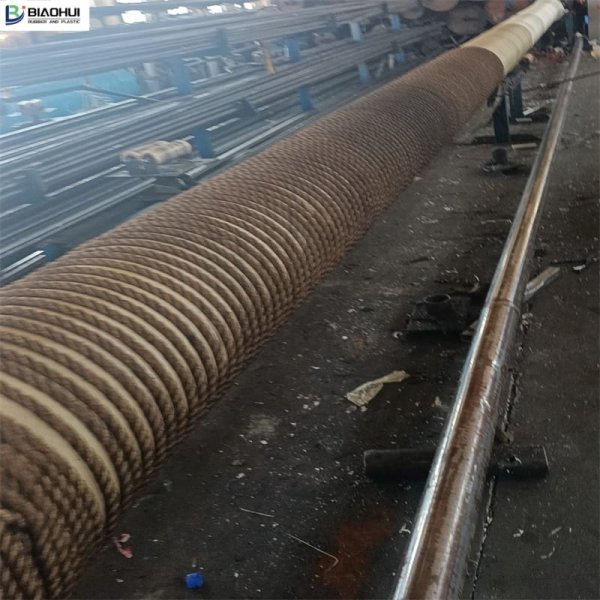

Reinforcement:Multi plies high strength synthetic fibre
Cover:Black,smooth,cloth impression, SBR rubber compound
Application:
Designed for water and non-corrosive fluids used in construction ,mines and light duty industrial applications.
Rubber water discharge hose is ideal fortough industrial usages.
Temperature:
-40ºC(-104 ºF)+70ºC(+158 ºF)
Characteristics:
1.Weathering and ozone resistant.
2.Flexible and light weight
3.Max 60m/200ft
WATER DISCHARGE HOSE 150 PSI | |||||||||
Item | I.D | O.D | W.P | B.P | L | ||||
inch | mm | mm | bar | psi | bar | psi | m | ft | |
WDH1-05 | 3/16" | 4.8 | 12 | 10 | 150 | 30 | 450 | 100 | 330 |
WDH1-06 | 1/4" | 6.4 | 13 | 10 | 150 | 30 | 450 | 100 | 330 |
WDH1-08 | 5/16" | 7.9 | 15 | 10 | 150 | 30 | 450 | 100 | 330 |
WDH1-09 | 3/8" | 9.5 | 16 | 10 | 150 | 30 | 450 | 100 | 330 |
WDH1-12 | 1/2" | 12.7 | 22 | 10 | 150 | 30 | 450 | 100 | 330 |
WDH1-16 | 5/8" | 15.9 | 26 | 10 | 150 | 30 | 450 | 100 | 330 |
WDH1-19 | 3/4" | 19.1 | 29 | 10 | 150 | 30 | 450 | 100 | 330 |
WDH1-22 | 7/8" | 22.2 | 32 | 10 | 150 | 30 | 450 | 100 | 330 |
WDH1-25 | 1" | 25.4 | 35 | 10 | 150 | 30 | 450 | 100 | 330 |
WDH1-32 | 1-1/4" | 31.8 | 42 | 10 | 150 | 30 | 450 | 60 | 200 |
WDH1-38 | 1-1/2" | 38.1 | 48 | 10 | 150 | 30 | 450 | 60 | 200 |
WDH1-50 | 2" | 50.8 | 62 | 10 | 150 | 30 | 450 | 60 | 200 |
WDH1-63 | 2-1/2" | 63.5 | 76 | 10 | 150 | 30 | 450 | 60 | 200 |
WDH1-76 | 3" | 76.2 | 89 | 10 | 150 | 30 | 450 | 60 | 200 |
WDH1-89 | 3-1/2" | 88.9 | 103 | 10 | 150 | 30 | 450 | 60 | 200 |
WDH1-102 | 4" | 101.6 | 116 | 10 | 150 | 30 | 450 | 60 | 200 |
WDH1-127 | 5" | 127 | 142 | 10 | 150 | 30 | 450 | 30 | 100 |
WDH1-152 | 6" | 152.4 | 167 | 10 | 150 | 30 | 450 | 30 | 100 |
WDH1-203 | 8" | 203.2 | 219 | 10 | 150 | 30 | 450 | 30 | 100 |
WDH1-254 | 10" | 254 | 274 | 10 | 150 | 30 | 450 | 12 | 40 |
WDH1-305 | 12" | 304.8 | 322 | 10 | 150 | 30 | 450 | 12 | 40 |
WATER DISCHARGE HOSE 300 PSI | |||||||||
Item | I.D | O.D | W.P | B.P | L | ||||
inch | mm | mm | bar | psi | bar | psi | m | ft | |
WDH2-008 | 5/16" | 7.9 | 15 | 20 | 300 | 60 | 900 | 100 | 330 |
WDH2-009 | 3/8" | 9.5 | 16 | 20 | 300 | 60 | 900 | 100 | 330 |
WDH2-012 | 1/2" | 12.7 | 22 | 20 | 300 | 60 | 900 | 100 | 330 |
WDH2-016 | 5/8" | 15.9 | 26 | 20 | 300 | 60 | 900 | 100 | 330 |
WDH2-019 | 3/4" | 19.1 | 29 | 20 | 300 | 60 | 900 | 100 | 330 |
WDH2-025 | 1" | 25.4 | 36 | 20 | 300 | 60 | 900 | 100 | 330 |
WDH2-032 | 1-1/4" | 31.8 | 44 | 17 | 250 | 51 | 750 | 60 | 200 |
WDH2-038 | 1-1/2" | 38.1 | 51 | 17 | 250 | 51 | 750 | 60 | 200 |
WDH2-050 | 2" | 50.8 | 65 | 17 | 250 | 51 | 750 | 60 | 200 |
WDH2-063 | 2-1/2" | 63.5 | 78 | 17 | 250 | 51 | 750 | 60 | 200 |
WDH2-076 | 3" | 76.2 | 91 | 17 | 250 | 51 | 750 | 60 | 200 |
WDH2-089 | 3-1/2" | 88.9 | 108 | 17 | 250 | 51 | 750 | 60 | 200 |
WDH2-102 | 4" | 101.6 | 120 | 17 | 250 | 51 | 750 | 60 | 200 |
WDH2-127 | 5" | 127 | 148 | 17 | 250 | 51 | 750 | 30 | 100 |
WDH2-152 | 6" | 152.4 | 173 | 17 | 250 | 51 | 750 | 30 | 100 |
WDH2-203 | 8" | 203.2 | 228 | 17 | 250 | 51 | 750 | 30 | 100 |
WDH2-254 | 10" | 254 | 280 | 17 | 250 | 51 | 750 | 12 | 40 |
WDH2-304 | 12" | 304.8 | 330 | 17 | 250 | 51 | 750 | 12 | 40 |
