Resistant To High Pressure, High Temperature, And Wear, With Strong Flexibility—Widely Applied In Coal, Petrochemicals, Metallurgy, Mining, Construction, Electricity, And More.

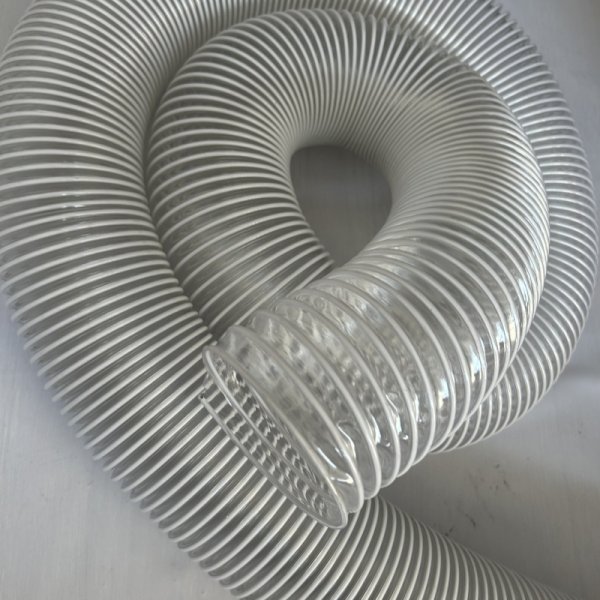

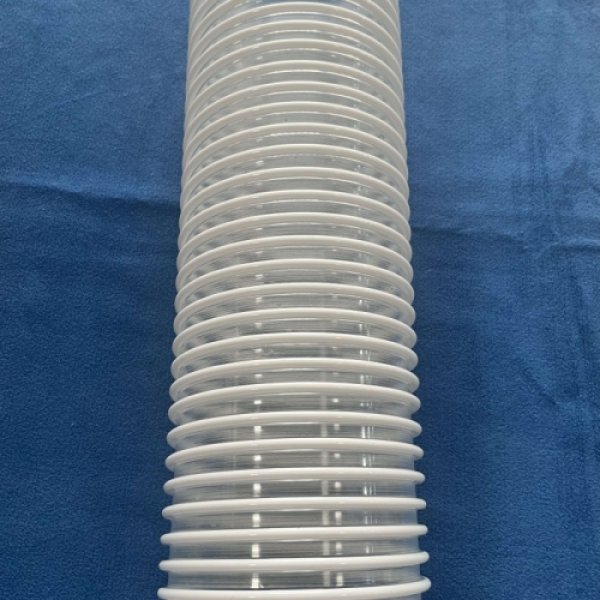

PVC steel wire duct hose provide great flexibility with tight bending characteristics and offer good chemical and moisture resistance and the hose exhibits excellent compressible.
Construction:
Wall: Soft PVC
Spiral: Steel wire PVC coated
Application:
Especially ideal for ventilation , industrial vacuum
cleaner,and granulate conveying systems.
As suction and transport hose suitable for below substance:
Gaseous medias such as vapors and smoke Liquid medias
Small granules such as dusts, powders and etc.
Characteristic:
1.Highly flexible with low weight
2.Extremely compressible
3.Could be static electricity conductive by grounding the steel wire
4.Smooth interior
5.Highly transparent wall
6.Small bending radius
7.Comply to RoHS
Temperature: -20ºC (-70 ºF ) to 70ºC(+150 ºF)
| Item code | I.D | Thickness | Bending Radius | W.P | Vacuum Pressure | L | |||
| mm | light duty(mm) | medium duty(mm) | mm | light duty(bar) | medium duty(bar) | light duty(bar) | medium duty(bar) | m | |
| PSDH025 | 25 | 0.4 | 0.6 | 38 | 0.5 | 1.5 | 0.25 | 0.45 | 10 |
| PSDH032 | 32 | 0.4 | 0.6 | 46 | 0.45 | 1.5 | 0.19 | 0.43 | 10 |
| PSDH038 | 38 | 0.4 | 0.6 | 53 | 0.4 | 1.4 | 0.18 | 0.4 | 10 |
| PSDH040 | 40 | 0.4 | 0.6 | 55 | 0.4 | 1.4 | 0.17 | 0.4 | 10 |
| PSDH051 | 51 | 0.4 | 0.6 | 67 | 0.35 | 1.3 | 0.15 | 0.3 | 10 |
| PSDH060 | 60 | 0.4 | 0.6 | 78 | 0.35 | 1.2 | 0.14 | 0.3 | 10 |
| PSDH063 | 63 | 0.4 | 0.6 | 84 | 0.3 | 1.2 | 0.13 | 0.3 | 10 |
| PSDH076 | 76 | 0.4 | 0.6 | 89 | 0.3 | 0.9 | 0.12 | 0.25 | 10 |
| PSDH080 | 80 | 0.4 | 0.6 | 105 | 0.25 | 0.9 | 0.1 | 0.25 | 10 |
| PSDH090 | 90 | 0.4 | 0.6 | 118 | 0.23 | 0.8 | 0.09 | 0.2 | 10 |
| PSDH102 | 102 | 0.4 | 0.6 | 165 | 0.2 | 0.7 | 0.08 | 0.2 | 10 |
| PSDH127 | 127 | 0.4 | 0.6 | 202 | 0.15 | 0.5 | 0.06 | 0.15 | 10 |
| PSDH140 | 140 | 0.4 | 0.6 | 222 | 0.1 | 0.4 | 0.06 | 0.13 | 10 |
| PSDH152 | 152 | 0.4 | 0.6 | 240 | 0.08 | 0.3 | 0.05 | 0.1 | 10 |
| PSDH159 | 159 | 0.4 | 0.6 | 250 | 0.07 | 0.28 | 0.05 | 0.09 | 10 |
| PSDH178 | 178 | 0.4 | 0.6 | 279 | 0.06 | 0.26 | 0.04 | 0.08 | 10 |
| PSDH203 | 203 | 0.4 | 0.6 | 316 | 0.05 | 0.23 | 0.03 | 0.08 | 10 |
| PSDH254 | 254 | 0.4 | 0.6 | 394 | 0.04 | 0.2 | 0.03 | 0.07 | 10 |
| PSDH305 | 305 | 0.4 | 0.6 | 472 | 0.03 | 0.16 | 0.02 | 0.06 | |
