Resistant To High Pressure, High Temperature, And Wear, With Strong Flexibility—Widely Applied In Coal, Petrochemicals, Metallurgy, Mining, Construction, Electricity, And More.

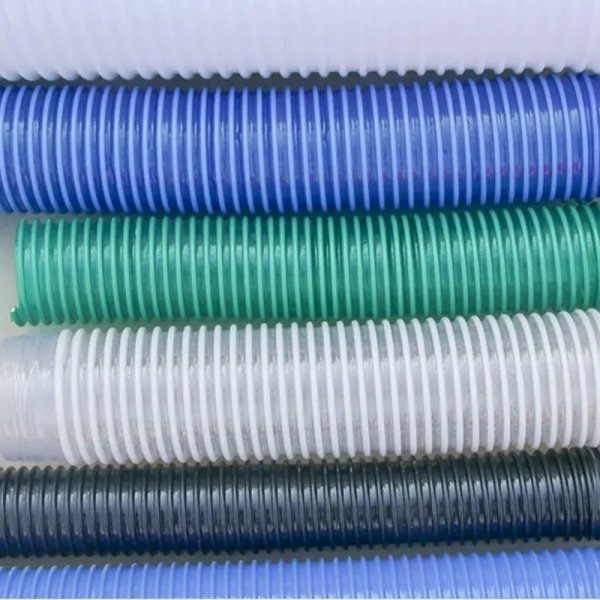

PVC helix duct high strength, can be bent freely, without rigid bends, can reduce wind resistance, integrated molding, reduce air leakage, core reinforcement is not easy to break, long service life, manually wrapped film forming, smooth inner wall, acid and alkali resistant corrosive gases, not easy to age and other advantages.
Construction:
Wall: Top grade of PVC
Spiral: Rigid PVC
Application:
1.As suction and transport hose especially suitable for below
substance:Gaseous and liquid media
2.Abrasive solids such as dusts, powders, chips and grains
3.Also ideal as ventilation hose for air conditioning and ventilation system
Characteristic:
1.Extremely tearing-resistant with rigid reinforced PVC helix
2.Very abrasive
3.Very smooth interior
4.Very Flexible with low weight
5.Extremely transparent
6.Could be resistant to UV if requested
7.Various sizes are available
Temperature: -10ºC to 65ºC
| Item code | I.D | Thickness | Bending Radius | W.P | Vacuum Pressure | L | |||
| mm | light duty (mm) | medium duty (mm) | mm | light duty (bar) | medium duty (bar) | light duty (bar) | medium duty (bar) | m | |
| PVD025 | 25 | 0.4 | 0.6 | 38 | 0.5 | 1.5 | 0.25 | 0.45 | 10 |
| PVD032 | 32 | 0.4 | 0.6 | 46 | 0.45 | 1.5 | 0.19 | 0.43 | 10 |
| PVD038 | 38 | 0.4 | 0.6 | 53 | 0.4 | 1.4 | 0.18 | 0.4 | 10 |
| PVD040 | 40 | 0.4 | 0.6 | 55 | 0.4 | 1.4 | 0.17 | 0.4 | 10 |
| PVD051 | 51 | 0.4 | 0.6 | 67 | 0.35 | 1.3 | 0.15 | 0.3 | 10 |
| PVD060 | 60 | 0.4 | 0.6 | 78 | 0.35 | 1.2 | 0.14 | 0.3 | 10 |
| PVD063 | 63 | 0.4 | 0.6 | 84 | 0.3 | 1.2 | 0.13 | 0.3 | 10 |
| PVD076 | 76 | 0.4 | 0.6 | 89 | 0.3 | 0.9 | 0.12 | 0.25 | 10 |
| PVD080 | 80 | 0.4 | 0.6 | 105 | 0.25 | 0.9 | 0.1 | 0.25 | 10 |
| PVD090 | 90 | 0.4 | 0.6 | 118 | 0.23 | 0.8 | 0.09 | 0.2 | 10 |
| PVD102 | 102 | 0.4 | 0.6 | 165 | 0.2 | 0.7 | 0.08 | 0.2 | 10 |
| PVD127 | 127 | 0.4 | 0.6 | 202 | 0.15 | 0.5 | 0.06 | 0.15 | 10 |
| PVD140 | 140 | 0.4 | 0.6 | 222 | 0.1 | 0.4 | 0.06 | 0.13 | 10 |
| PVD152 | 152 | 0.4 | 0.6 | 240 | 0.08 | 0.3 | 0.05 | 0.1 | 10 |
| PVD159 | 159 | 0.4 | 0.6 | 250 | 0.07 | 0.28 | 0.05 | 0.09 | 10 |
| PVD178 | 178 | 0.4 | 0.6 | 279 | 0.06 | 0.26 | 0.04 | 0.08 | |
