Resistant To High Pressure, High Temperature, And Wear, With Strong Flexibility—Widely Applied In Coal, Petrochemicals, Metallurgy, Mining, Construction, Electricity, And More.

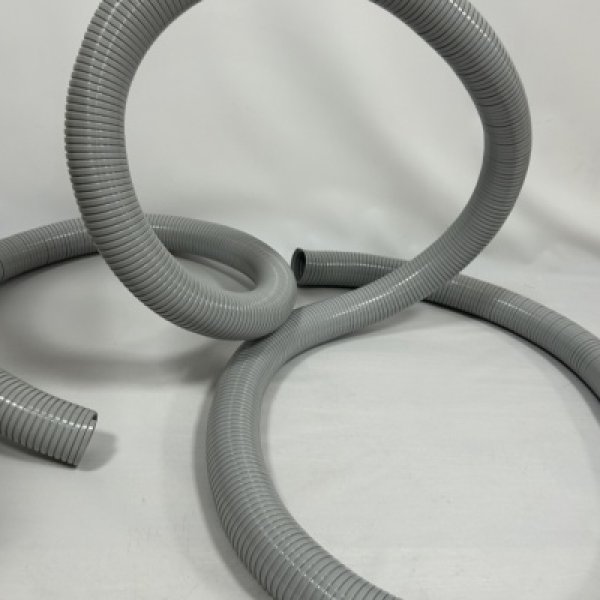

Interlock duct is self-supporting. Suitable for air conditioning and fumes suction in electronic plant.
Materials: Hose wall: PP/PE/PVC

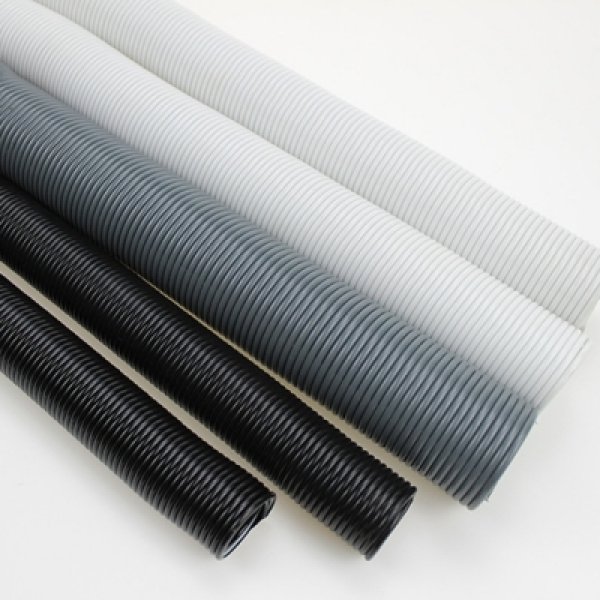

Colors:.Black / off white / gray
Temperature:-10/ 80C
Key Features:Durable and wear-resistant, Adjustable length (1.5 times),Adjustable caliber sizeAppications Exhaust of fans and air conditioners, Ventilation and dust collection,Powder conveying,Electrical wiring, Can be used in oilfumeenvironments
| Part Number | Internal diameter | Outer diameter | Weight | Bending radius | Coil length | |
| mm | mm | g/m | mm | m | ||
| 501-050-10 | 50.0.±0.8 | 59.0±1.0 | 470±2% | 120 | 5/10 | |
| 501-065-10 | 65.0±0.8 | 72.0±1.0 | 600±2% | 145 | 5/10 | |
| 501-075-10 | 75.0±0.8 | 82.0±1.0 | 640±2% | 165 | 5/10 | |
| 501-100-10 | 100.0±0.8 | 107.0±1.0 | 850±2% | 220 | 5/10 | |
| 501-125-10 | 125.0±0.8 | 132.0±1.0 | 1070±2% | 325 | 5/10 | |
| 501-150-10 | 150.0±1.5 | 157.0±1.5 | 1280±2% | 375 | 5/10 | |
| 501-200-10 | 200.0±2.0 | 211.0±2.0 | 2130±2% | 510 | 5/10 | |
| 501-250-4 | 250.0±2.5 | 261.0±2.5 | 2660±2% | 680 | 4/10 | |
