Resistant To High Pressure, High Temperature, And Wear, With Strong Flexibility—Widely Applied In Coal, Petrochemicals, Metallurgy, Mining, Construction, Electricity, And More.
High pressure thermoplastic hose consists of a thermoplastic inner tube for hydraulic oil transfer, high strength steel wire reinforcements and a weather resistant cover, featuring lightweight, more durable and long storage period.

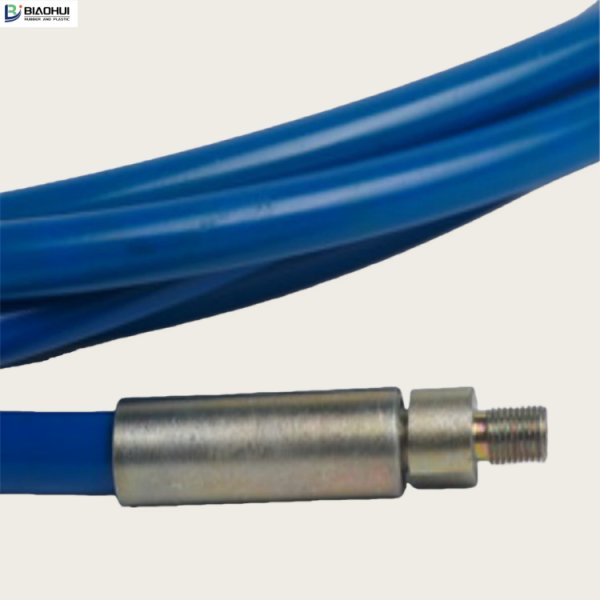

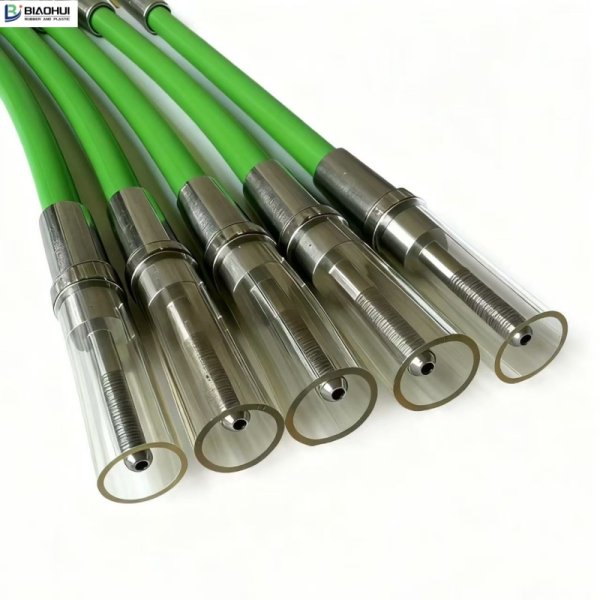

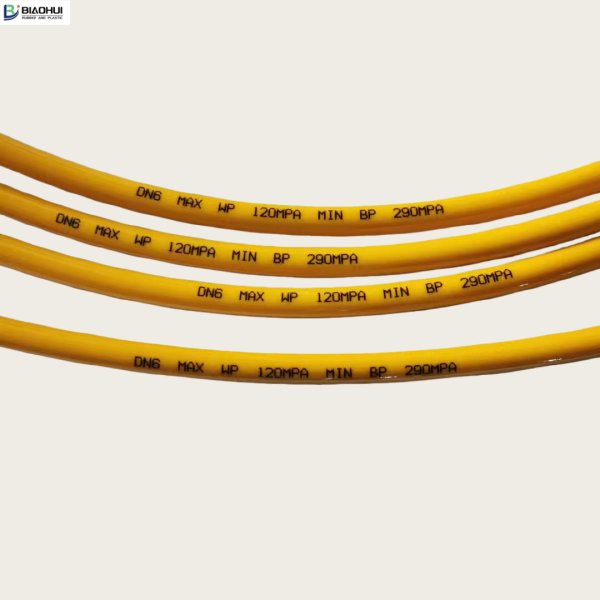

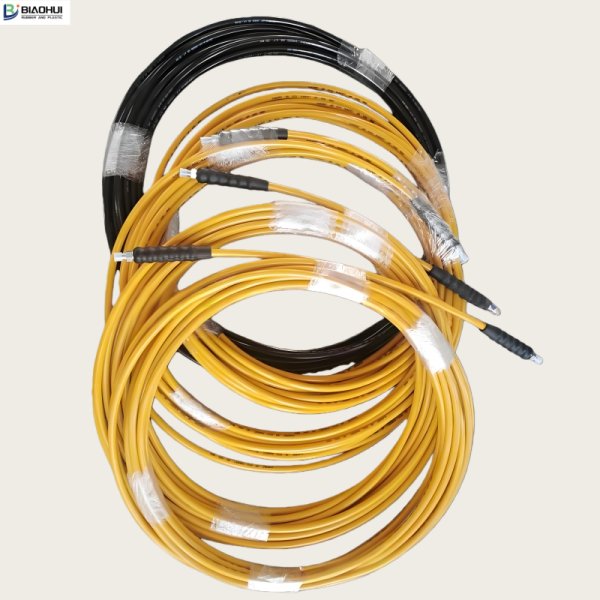

High Pressure Thermoplastic Hose
Technical Data

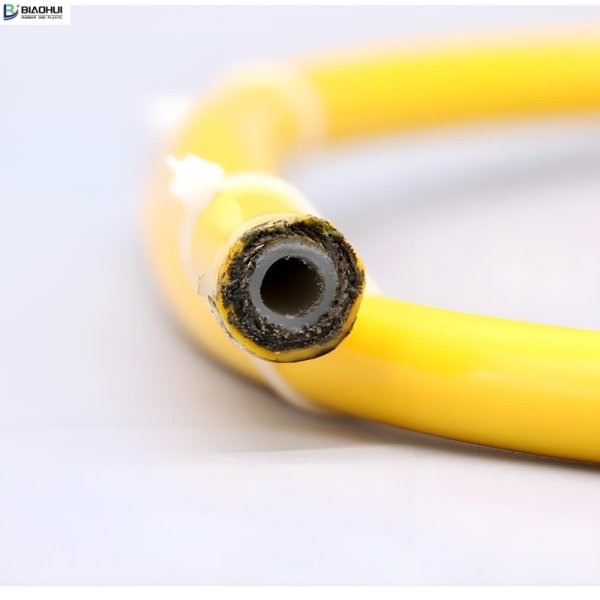

Construction: inner tube, reinforcement, cover and fireproof sleeve.
Inner Tube: thermoplastic inner tube
Reinforcement: high steel steel wire
Cover: heat resistant thermoplastic plastic
Outside: fireproof sleeve
Temperature: -40 °C to 100 °C (-40 °F to +212 °F)
| No. | I.D. | Reinforcement | O.D. | Max. Working Pressure | Min. Burst Pressure | Min. Bending Radius | ||
|---|---|---|---|---|---|---|---|---|
| mm | mm | MPa | PSI | MPa | PSI | mm | ||
| NH-3/2SP | 3 | 2 | 8 | 120 | 17400 | 300 | 43500 | 95 |
| NH-3/4SP | 4 | 9.2 | 200 | 29000 | 500 | 72500 | 100 | |
| NH-4/2SP | 4 | 2 | 10.8 | 120 | 17400 | 300 | 43500 | 105 |
| NH-4/4SP | 4 | 12.6 | 200 | 29000 | 5oo | 72500 | 115 | |
| NH-4/6SP | 6 | 14.4 | 260 | 37700 | 650 | 94250 | 130 | |
| NH-4/8SP | 8 | 16.2 | 310 | 44950 | 775 | 112375 | 145 | |
| NH-5/2SP | 5 | 2 | 12.2 | 120 | 17400 | 300 | 43500 | 115 |
| NH-5/4SP | 4 | 14 | 180 | 26100 | 450 | 65250 | 120 | |
| NH-5/6SP | 6 | 16 | 280 | 40600 | 625 | 90625 | 130 | |
| NH-5/8SP | 8 | 18 | 300 | 43500 | 750 | 108750 | 145 | |
| NH-6/2SP | 6 | 2 | 13.6 | 110 | 15950 | 275 | 39875 | 125 |
| NH-6/4SP | 4 | 15.6 | 170 | 24650 | 425 | 61625 | 140 | |
| NH-6/6SP | 6 | 17.6 | 230 | 33350 | 575 | 83375 | 155 | |
| NH-6/8SP | 8 | 19.6 | 280 | 40600 | 700 | 101500 | 170 | |
| NH-8/2SP | 8 | 2 | 16.2 | 100 | 14500 | 250 | 36250 | 155 |
| NH-8/4SP | 4 | 18.2 | 160 | 23200 | 400 | 58000 | 175 | |
| NH-8/6SP | 6 | 20.2 | 220 | 31900 | 550 | 79750 | 195 | |
| NH-8/8SP | 8 | 22.2 | 260 | 37700 | 650 | 94250 | 210 | |
| NH-10/2SP | 10 | 2 | 19 | 100 | 14500 | 250 | 36250 | 180 |
| NH-10/4SP | 4 | 21.4 | 160 | 23200 | 400 | 58000 | 200 | |
| NH-10/6SP | 6 | 23.8 | 220 | 31900 | 550 | 79750 | 220 | |
| NH-12/2SP | 12 | 2 | 21.2 | 80 | 11600 | 200 | 29000 | 190 |
| NH-12/4SP | 4 | 23.6 | 130 | 18850 | 325 | 47125 | 210 | |
| NH-12/6SP | 6 | 26 | 180 | 26100 | 450 | 65250 | 230 | |
| NH-16/2SP | 16 | 2 | 27 | 60 | 8700 | 150 | 21750 | 230 |
| NH-16/4SP | 4 | 29.5 | 100 | 14500 | 250 | 36250 | 260 | |
| NH-19/2SP | 19 | 2 | 30 | 55 | 7975 | 220 | 31900 | 240 |
| NH-19/4SP | 4 | 32 | 95 | 13775 | 380 | 55100 | 265 | |
| NH-25/2SP | 25 | 2 | 34.5 | 50 | 7250 | 200 | 29000 | 300 |
| NH-25/4SP | 4 | 36.5 | 85 | 12325 | 340 | 49300 | 300 | |
| NH-32/2SP | 32 | 2 | 43.5 | 40 | 5800 | 160 | 23200 | 350 |
| NH-32/4SP | 4 | 46.5 | 60 | 8700 | 240 | 34800 | 350 | |
Application
It is widely used in automotive industry, construction machinery, and mechanical machinery for hydraulic oil transfer. In addition, it has good resistant to oil, heat, high pressure, aging and impulse, and can be used as special hoses for high pressure spray painting and pressure washers.
