Resistant To High Pressure, High Temperature, And Wear, With Strong Flexibility—Widely Applied In Coal, Petrochemicals, Metallurgy, Mining, Construction, Electricity, And More.

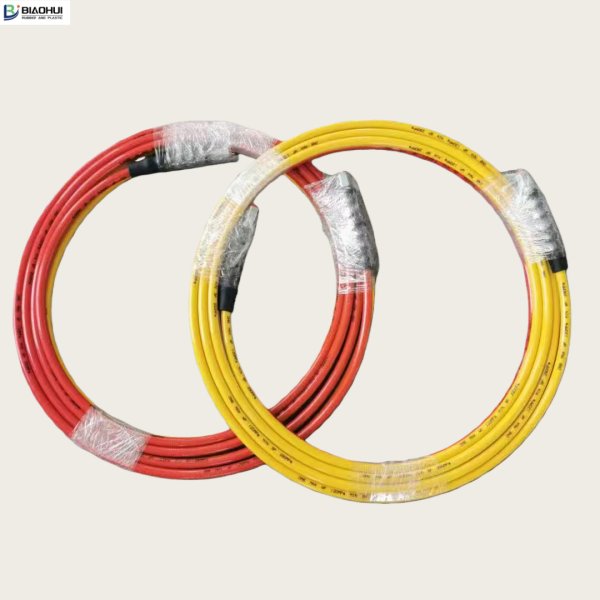

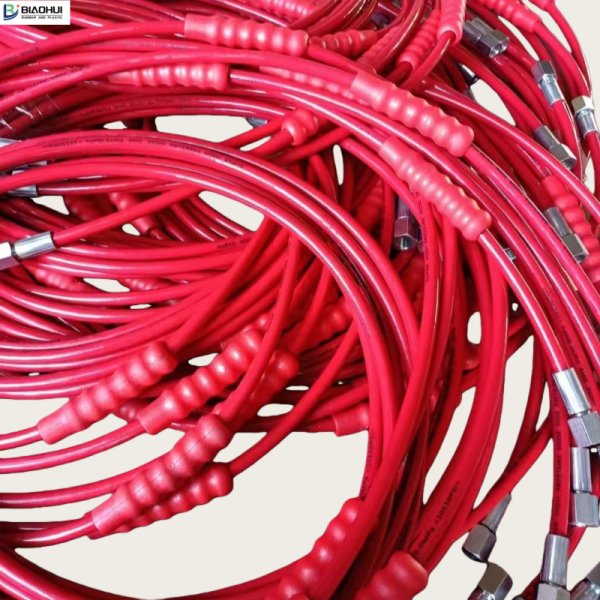

Very High-Pressure hydraulic lines 700 bar. High abrasion resistance and low change in length for use with petroleum, synthetic or water-based fluid in hydraulic oil transfer and other hydraulic tools.
Application:

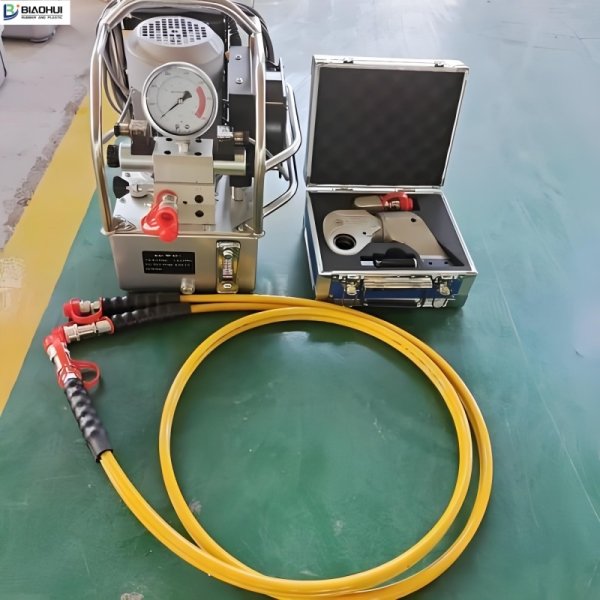

Very High-Pressure hydraulic lines 700 bar. High abrasion resistance and low change in length for use with petroleum, synthetic or water-based fluid in hydraulic oil transfer and other hydraulic tools. (rescue and safety equipment, bolt tensioning tools, jacking & re-railing equipment, earthmoving and material handling equipment)

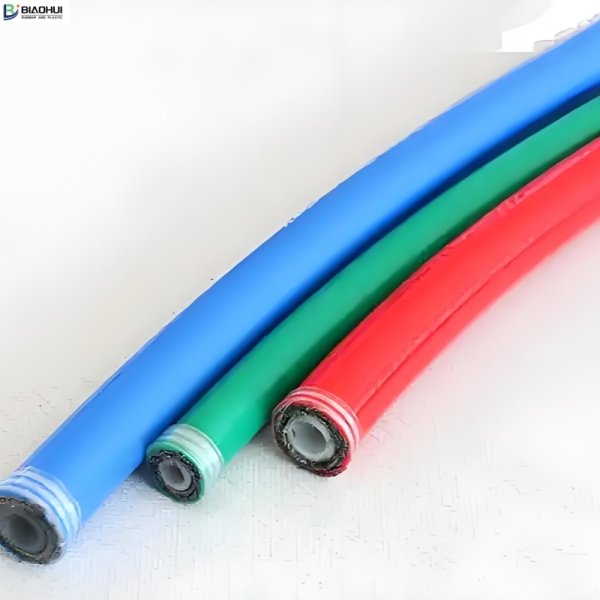

Structure:
Core: Thermoplastic Elastomer
Reinforcement: One or more braids of aramia fiber with one steel wire
Cover: Polyurethane
Temperature: -40 to 100℃
Color：Red
LENGTH: 2FT,3FT,6FT,10FT,20FT,30FT,50FT
FITTING: 1/4”NPT, 3/8”NPT
Series 43 Fittings for JK Hose : 10143-4-4, 10143-4-6, 10143-6-4, 10143-6-6
| Hose I.D. | Wire O.D. | Hose O.D. | Working Pressure | Burst Pressure | Mini. Bend Radius | Weight | |||
| Inch | mm | mm | mm | Bar | Psi | Bar | Psi | mm | kg/m |
| 1/4 | 6.3 | 12.7 | 15.0 | 725 | 10500 | 1450 | 21000 | 100 | 0.39 |
| 3/8 | 9.5 | 16.7 | 19.0 | 700 | 10000 | 1400 | 20000 | 125 | 0.55 |
