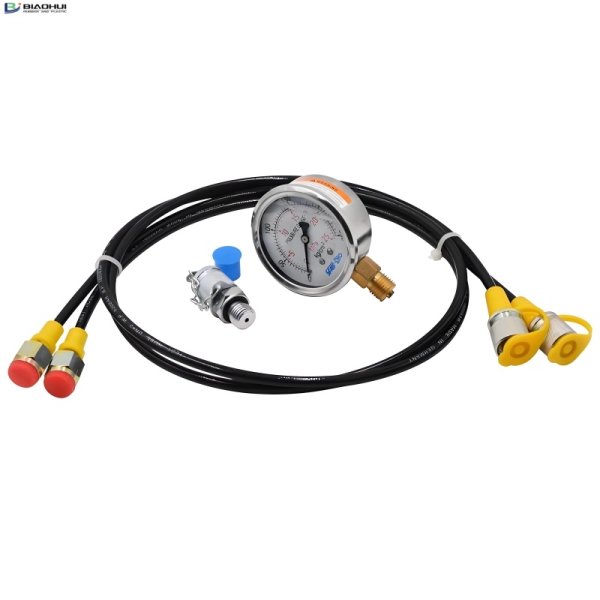

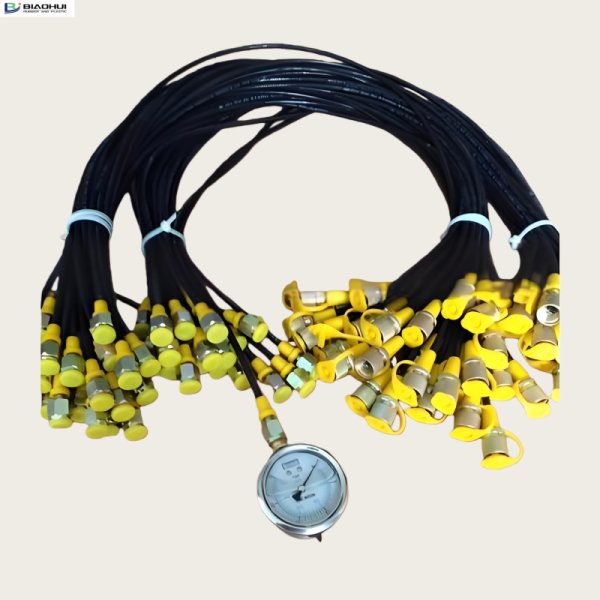

Micro Pressure Test Hose

Micro Pressure Test Hose

1.HF series micro high pressure hose nominal diameter of 2mm and 3mm, the maximum working pressure 64MPA, used in the hydraulic system.
2.HF series pressure hose assembly and pressure measuring connector,
3.HF series pressure hose assembly has the advantages of advanced structure, reliable sealing, reliable fixation, small volume, light weight, easy to use, etc.

Product Applications
Mainly used in hydraulic support mine, oil field development, suitable for engineering construction, lifting and transport, metallurgy, forging, mining equipment, ships, plastic injection machinery, agricultural machinery, machine tools, as well as a variety of industrial sectors mechanization and automation transmission with hydraulic system a certain pressure and temperature of the oil-based (such as mineral oil, soluble oil, hydraulic oil, fuel oil, lubricants) and water-based liquids (eg, emulsion, oil-water emulsion, water), etc. And liquid transmission.

1.Structure
Inner core: Polyamide
Reinforcement: 1 layers of braided aramid fiber
Sheath: Pin pricked anti-abrasion polyurethane
2.Operating temperature
-40ºC ~ 120ºC
3.Under pressure
1.Working Pressure can reach 630 Bars.
2.Burst Pressure can reach 3000 Bars.

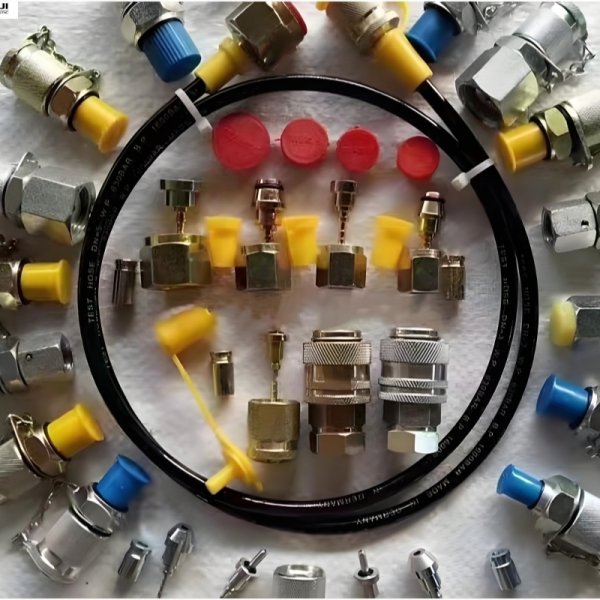

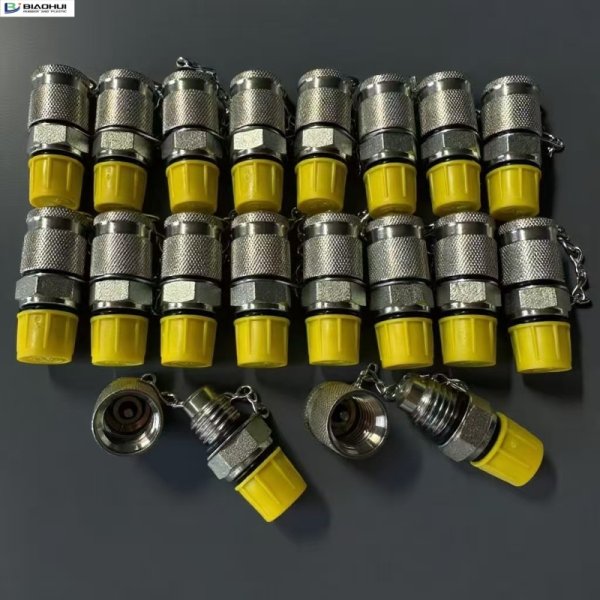

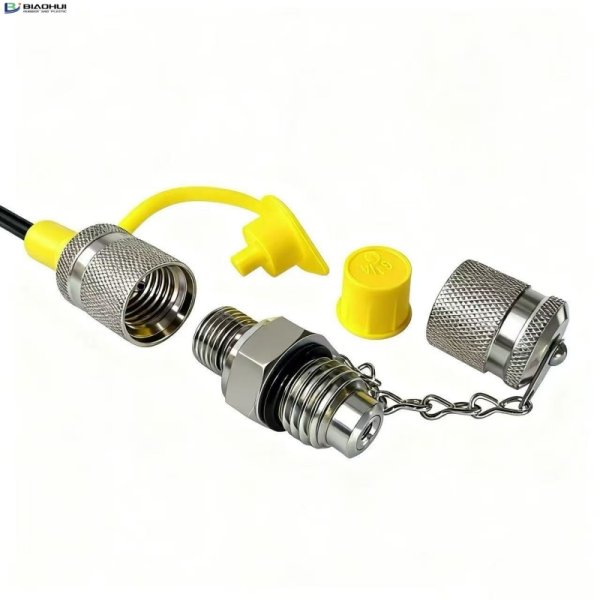

4.Connection method
Articulated, quick change type, sleeve type, cone seal etc.,can also provide other connection user needs
