Resistant To High Pressure, High Temperature, And Wear, With Strong Flexibility—Widely Applied In Coal, Petrochemicals, Metallurgy, Mining, Construction, Electricity, And More.

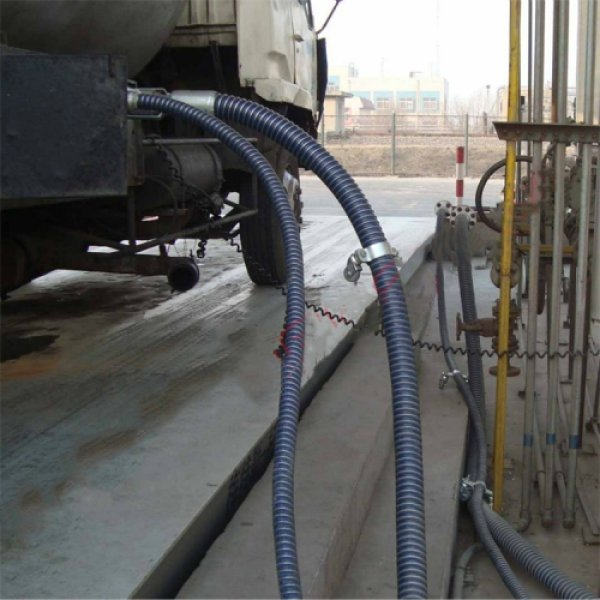

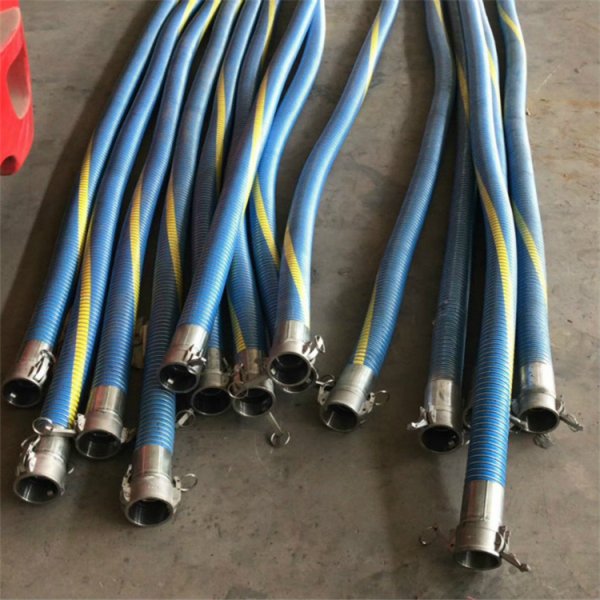

Tanker composite hose is specially designed for tankers of highway and railway. It is soft and lightweight, and it is suitable for frequent bent mobile use. It has excellent anti-static performance. Tanker composite hose is suitable for all fuel oil products, such as gasoline, diesel, crude oil, lubricating oil, ethanol gasoline and biodiesel. It is also suitable for the delivery of chemical fluids which are corrosive and aggressive.
Tanker composite hose is specially designed for tankers of highway and railway. It is soft and lightweight
The details of tanker composite hose:
Temperature range: -30°C to +90°C.
Inner diameter: 2", 2.5", 3" and 4".
Working pressure: 0.7MPa, 1.05MPa and 1.52MPa.
Burst pressure: 2.8MPa, 4.2MPa and 6.1MPa (Burst pressure is four times as high as the working pressure).
| Hose code | Inner diameter | Working pressure | Burst pressure | Bend radius | weight | |||
|---|---|---|---|---|---|---|---|---|
| inch | mm | MPa | psi | MPa | psi | mm | kg/m | |
| PTCH-01 | 2 | 51 | 0.7 | 102 | 2.8 | 406 | 102 | 0.9 |
| PTCH-02 | 2.5 | 64 | 0.7 | 102 | 2.8 | 406 | 115 | 1.51 |
| PTCH-03 | 3 | 76 | 0.7 | 102 | 2.8 | 406 | 151 | 1.9 |
| PTCH-04 | 2.5 | 64 | 1.05 | 152 | 4.2 | 609 | 195 | 2.5 |
| PTCH-05 | 3 | 76 | 1.05 | 152 | 4.2 | 609 | 228 | 3.2 |
| PTCH-06 | 4 | 102 | 1.05 | 152 | 4.2 | 609 | 351 | 4.5 |
| PTCH-07 | 2 | 51 | 1.52 | 220 | 6.1 | 885 | 225 | 1.97 |
| PTCH-08 | 2.5 | 64 | 1.52 | 220 | 6.1 | 885 | 245 | 2.8 |
| PTCH-09 | 3 | 76 | 1.52 | 220 | 6.1 | 885 | 300 | 3.5 |
| PTCH-10 | 4 | 102 | 1.52 | 220 | 6.1 | 885 | 400 | 6.0 |
