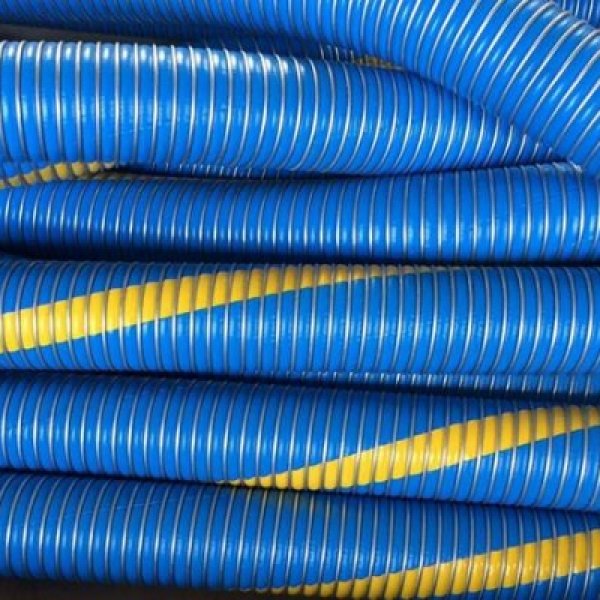

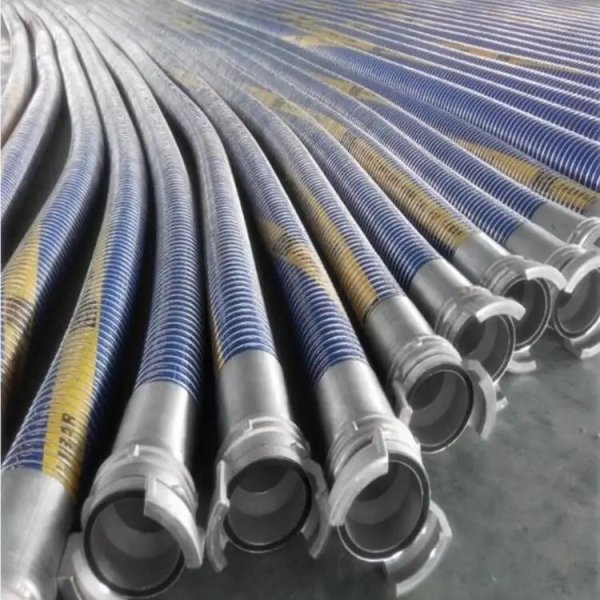

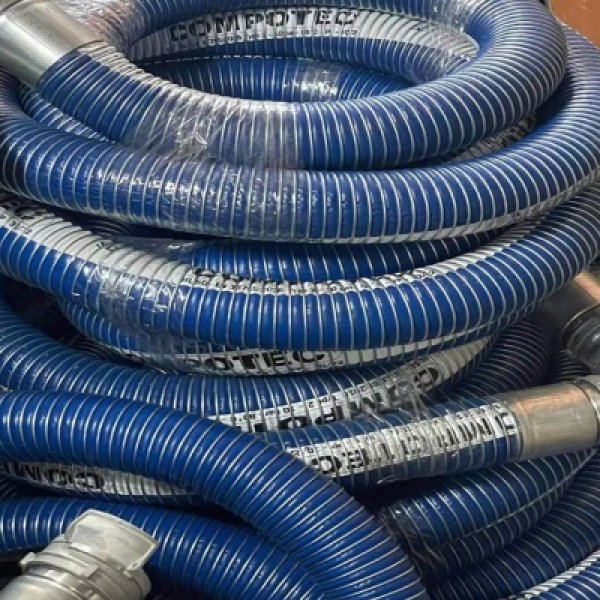

Biofuel and Biodiesel Composite Hose

The structure of biofuel and biodiesel composite hose:

Biofuel and biodiesel composite hose is composed of five parts: inner helix wire, outer helix wire, liner, carcass and cover.

• Inner helix wire: nylon coated steel, aluminum or SS316.

• Outer helix wire: high tensile galvanized steel or stainless steel.

• Liner: polyamide or nylon.

• Carcass: multiple layers of polypropylene fabrics and films.

• Cover: abrasion resistant PVC fabrics.

Features of biofuel and biodiesel composite hose:

Flexible and soft, can bend freely.

Lightweight, easy to handle.

Resistant to abrasion, weather, ozone and UV rays.

Resistant to corrosion and chemical fluids.

Supplying easy multiple connections and disconnections and excellent durability due to the unique construction.

The details of biofuel and biodiesel composite hose:

• Temperature range: -20°C to +100°C.

• Inner diameter: 25mm, 38mm, 50mm, 65mm, 75mm, 100mm, 150mm, 200mm and 250mm.

• Outside diameter: 32mm, 50mm, 61mm, 76mm, 88mm, 112mm, 175mm, 240mm and 290mm.

• Bend radius: 100mm, 140mm, 180mm, 205mm, 280mm, 405mm, 510mm, 760mm and 915mm.

• Working pressure: 14 bar.

• Max working pressure: 250psi.

• Length: 15m.
