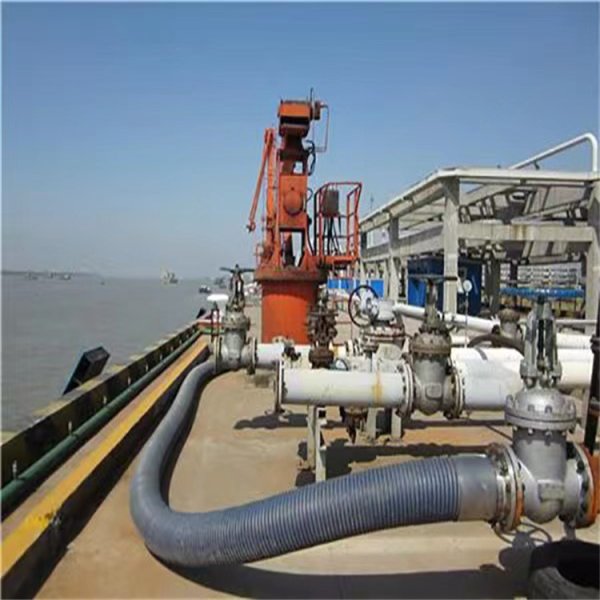

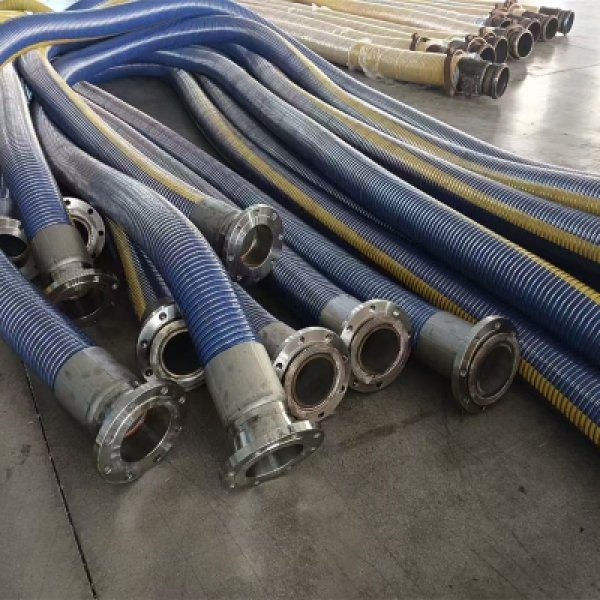

Dock Composite Hose

Dock composite hose is suitable for the delivery of fuel oil products and corrosive chemical liquids.

Features:

• Soft, can bend freely.

• Lightweight, easy to operate.

• Resistant to high pressure.

• Resistant to high temperature.

• Resistant to corrosion, oil and acids & alkalis.

• Excellent static export property.

The details of dock composite hose:

Temperature range: -30°C to +100°C.

Inner diameter: 2", 2.5", 3", 4", 6", 8" and 10".

Working pressure: 15 bar.

Burst pressure: 60 bar.

The specification of dock composite hose

Hose code	ID		Working pressure	Burst pressure	Bend radius
	inch	mm	bar	bar	mm
DCH-01	2	51	15	60	225
DCH-02	2.5	64	15	60	245
DCH-03	3	76	15	60	300
DCH-04	4	102	15	60	400
DCH-05	6	152	15	60	751
DCH-06	8	203	15	60	951
DCH-07	10	254	15	60	1102

The specific structure of dock composite hose

Type	Type A	Type B	Type C	Type D	Type F
Inner wire	Hot dip galvanized steel wire	Polypropylene covered steel wire	Stainless steel	Stainless steel	Stainless steel
Outer wire	Hot dip galvanized steel wire	Hot dip galvanized steel wire	Stainless steel	Hot dip galvanized steel wire	Stainless steel
Liner	Polypropylene	polypropylene	Polypropylene	Teflon	Teflon
