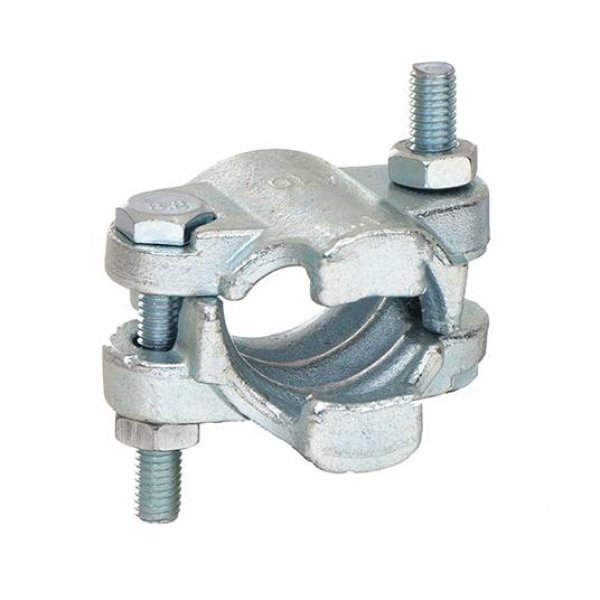

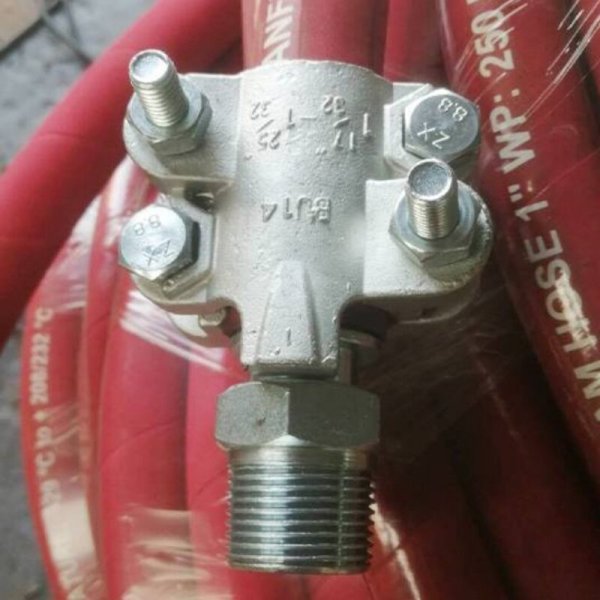

Steam hose with boss couplings & aluminum clamps

Superior Quality for Multi-Industry Applications

Resistant To High Pressure, High Temperature, And Wear, With Strong Flexibility—Widely Applied In Coal, Petrochemicals, Metallurgy, Mining, Construction, Electricity, And More.

Steam Hose

Steam Hose

Steam hose with boss couplings & aluminum clamps

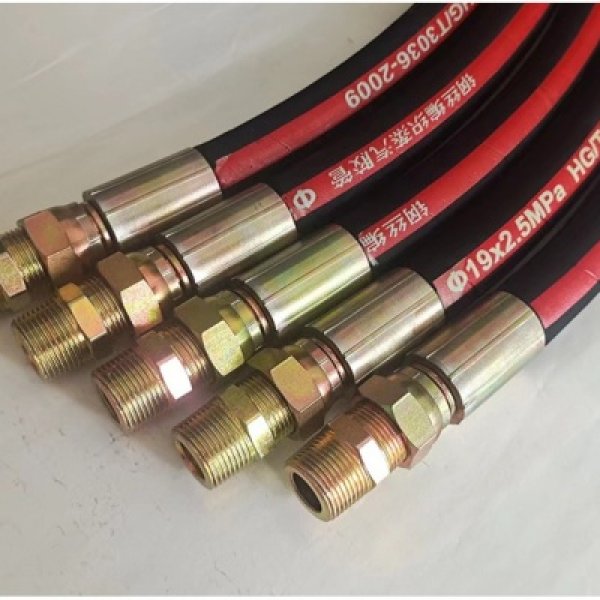

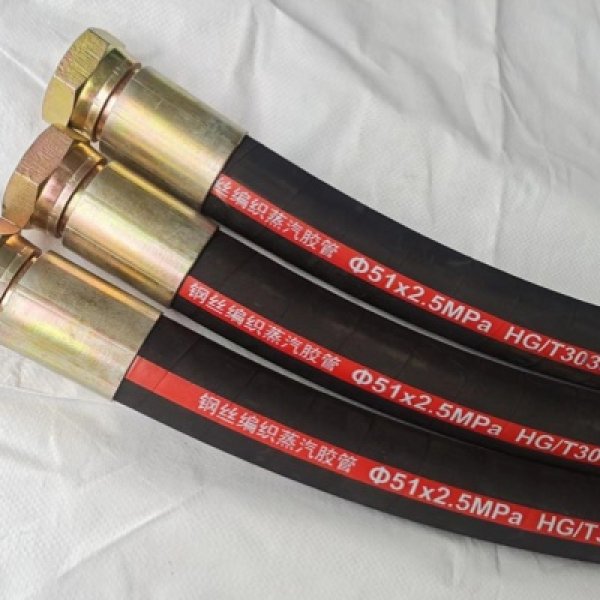

Steam hose with boss couplings & aluminum clamps is a rubber hose that conveys steam to every link required in the production process.

It is widely used in oil refineries, shipyards, chemical plants, steel mills, foundries and other industrial places for steam transfer and plays the role of cleaning, heat control, humidity maintenance, condensation and atomization prevention.

Add To Cart

Inquiry

Product Description
Inquiry

Industry Hose

Structure:

Tube: Black, smooth, EPDM rubber especially compounded to withstand super heated steam
Reinforcement: Multiple braids of high tensile steel wire.

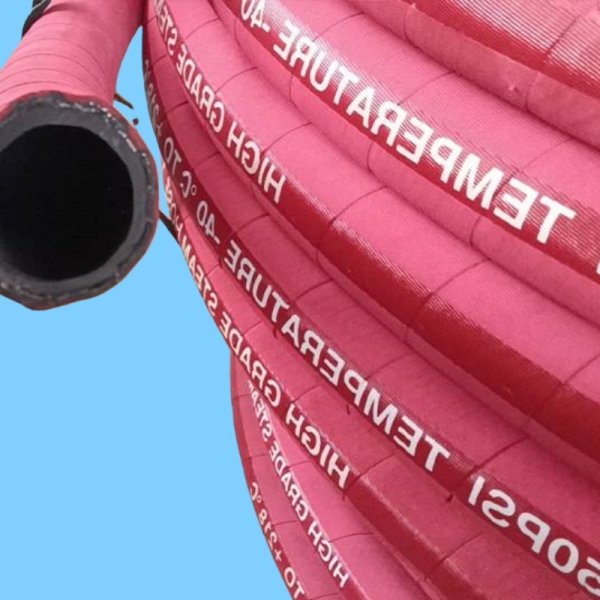

Cover: Red, smooth (wrapped) EPDM rubber with excellent resistance to high temperature, weather, abrasion and aging. It is pin-pricked to prevent separation.
Temperature: -40 °C to +236 °C（-40 °F to +456 °F）
Specifications: ISO 6134-TYPE 2 CLASS B

Specification:

Table 1: Boss Couplings and Aluminum Clamps Steam Hose Specification
Type	I.D.		O.D.	Working Pressure		Burst Pressure		Minimum Bending Radius	Weight	Length
-	DN	Inch	mm	Bar	PSI	Bar	PSI	mm	kg/m	m
1W	10	3/8"	21.5	30	435	120	570	110	0.44	20/50
	13	1/2"	24.5	30	435	120	570	120	0.49	20/50
	16	5/8"	27.5	30	435	120	570	155	0.64	20/50
	19	3/4"	30.5	30	435	120	570	185	0.7	20/50
	25	1"	37	30	435	120	570	240	0.92	20/50
	32	1-1/4"	44	30	435	120	570	330	1.19	20/40
	38	1-1/2"	50.5	30	435	120	570	390	1.56	20/40
	51	2"	63.5	30	435	120	570	520	2.32	20/40
	64	2-1/2"	77.5	30	435	120	570	640	3.03	20/40
2W	10	3/8"	23	70	870	280	860	130	0.49	20/50
	13	1/2"	26	70	870	280	860	180	0.53	20/50
	16	5/8"	30	70	870	280	860	205	0.75	20/50
	19	3/4"	33	70	870	280	860	240	0.78	20/50
	25	1"	40	70	870	280	860	300	1.02	20/50
	32	1-1/4"	48	70	870	280	860	420	1.41	20/40
	38	1-1/2"	54	70	870	280	860	500	1.77	20/40
	51	2"	69	70	870	280	860	630	2.58	20/40
	64	2-1/2"	81	70	870	280	860	700	3.16	20/40
