Resistant To High Pressure, High Temperature, And Wear, With Strong Flexibility—Widely Applied In Coal, Petrochemicals, Metallurgy, Mining, Construction, Electricity, And More.

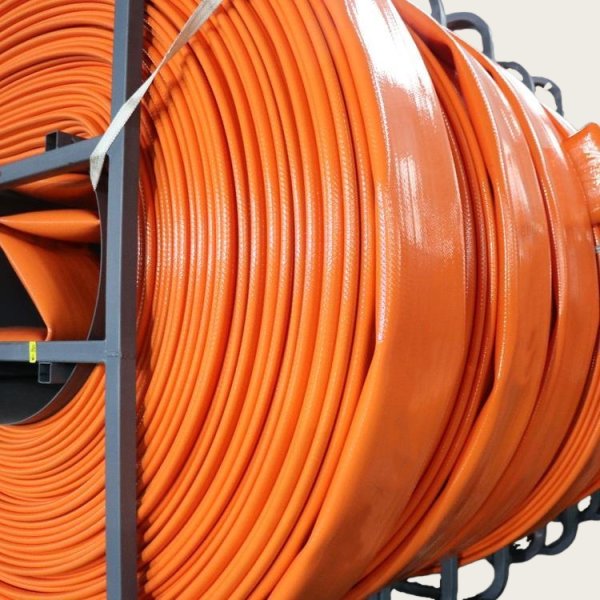

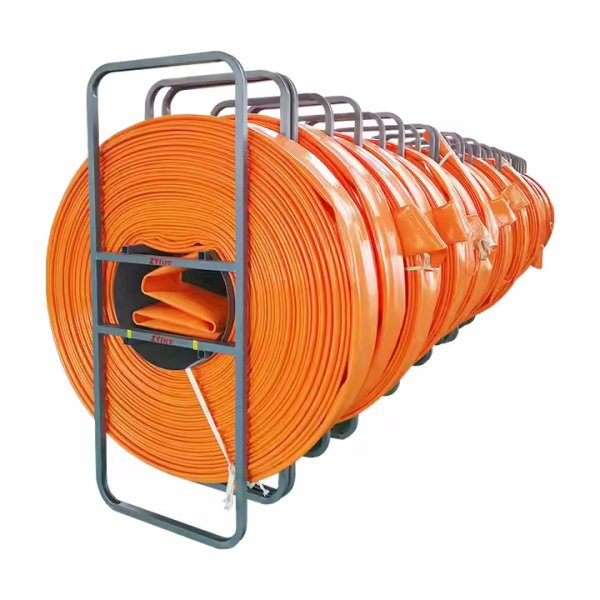

TPU Layflat Umbilical Slurry Hose is one type of super heavy-duty through-the-weave polyurethane (PU/TPU) covered hose. Manureflow hoses shall be made from 100% high tenacity synthetic yarn circular woven and completely, totally embedded in the PU compound, excellent protected against mechanical damage, forming a single homogenous construction without the use of any glues or adhesives of any type.
TPU / PU Drag Hose for Agriculutre
Drag Hose
Through-the-weave TPU Hose
Cover and Lining: TPU, Ribbed cover or smooth cover
Reinforcement Jacket: High tenacity synthetic jacket.

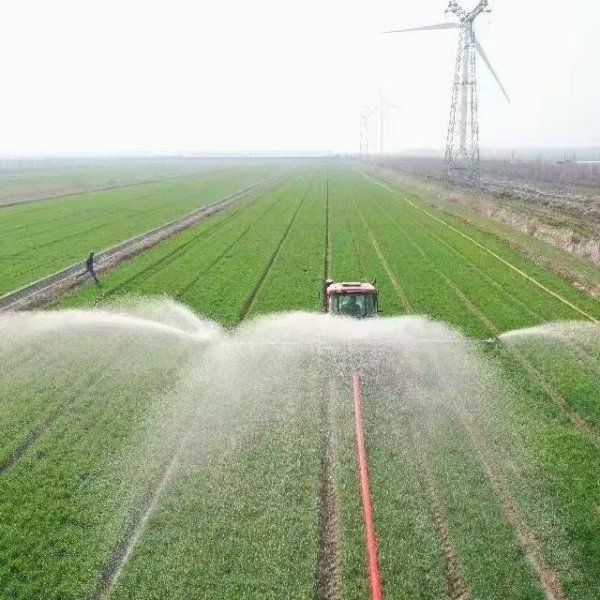

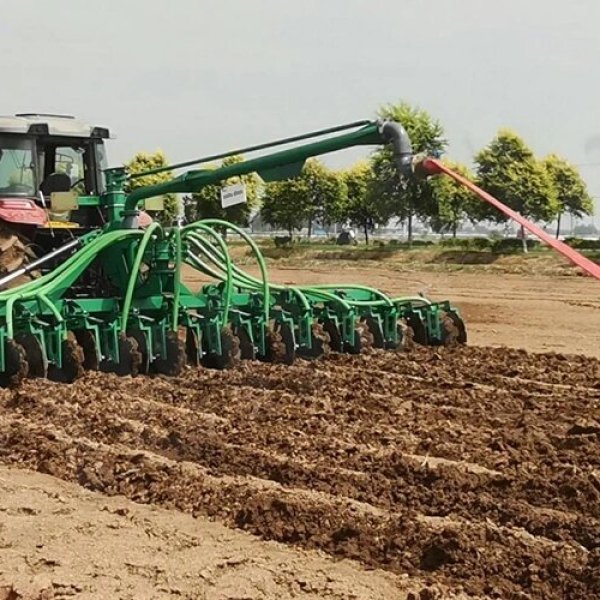

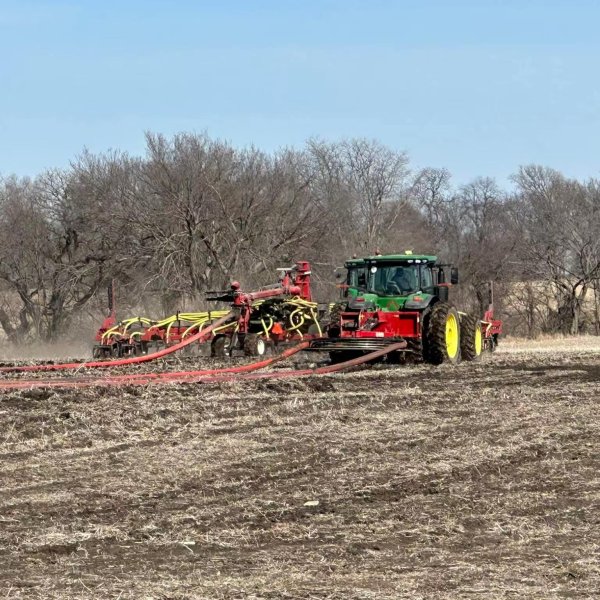

Application: Irrigation, Sludge discharge, Liquid fertilizers discharge, Supply or Drag hose.
Standard length: 30m (100ft), 61m (200ft), 91.5m (300ft), 100m (330ft), 200m (660ft), 300m (990ft), 400m (1320ft).
* High Tensile Polyester Contnuous Weave Jacket
* Through-the-Weave Extruded Construction Encapsulating the Woven Jacket
* TPU Thermoplastic Resin for Highest Abrasion Resistance in a Wide Range of Field Conditions
* Optimized Design for Low/No Kink in Tight Turn Situations
* Tem Range: -40° F to 160° F
* 5 1/2", 6" and 7" Diameters are Available in 660' and 1320' Lengths
<table font-size:14px;background-color:#ffffff;max-width:1060px;"="" style="border-spacing: 0px; background-color: rgb(255, 255, 255); margin: 0px; padding: 0px; -webkit-font-smoothing: antialiased; font-family: Arial, Helvetica, sans-serif; font-size: 17px; text-wrap-mode: wrap; width: 883px; border: 1px solid rgb(204, 204, 204); color: rgb(34, 34, 34);">
| I.D. | Tolerance | Wall Thickness | Service Pressure | Minimum Burst Pressure | Weight | Tensile Strength | ||||
| inch | mm | mm | inch | mm | Bar/psi | Bar/psi | Kg/m | lbs/ft | kgs | lbs |
| 4" | 102 | +2.5 | 0.16 | 4.2±0.3 | 13/200 | 39/600 | 1.6±0.2 | 1.08 | 17550 | 38802 |
| 5" | 127 | +3.0 | 0.17 | 4.5±0.3 | 12/160 | 36/480 | 2.0±0.2 | 1.34 | 22080 | 48943 |
| 5 1/2" | 140 | +3.0 | 0.17 | 4.5±0.3 | 10/150 | 30/450 | 2.3±0.3 | 1.55 | 22770 | 50486 |
| 6" | 154 | +3.0 | 0.18 | 4.6±0.3 | 10/150 | 30/450 | 2.6±0.3 | 1.75 | 27200 | 60296 |
| 7" | 178 | +3.0 | 0.18 | 4.6±0.3 | 10/150 | 30/450 | 3.0±0.3 | 2.02 | 35700 | 79146 |
