Manureflow PU Supply hose

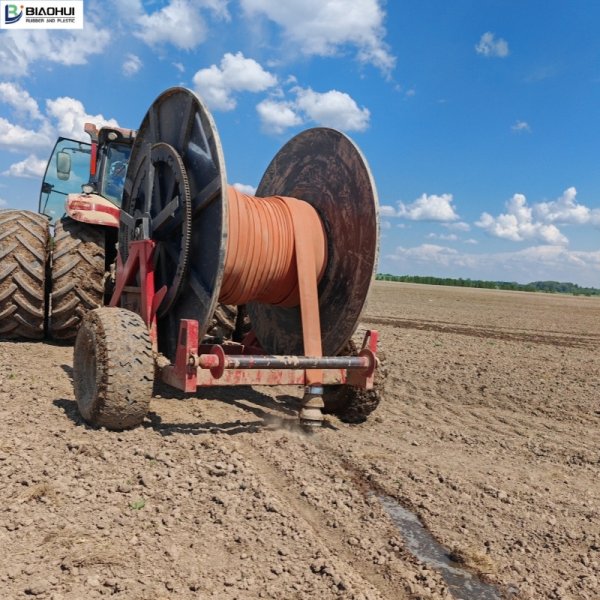

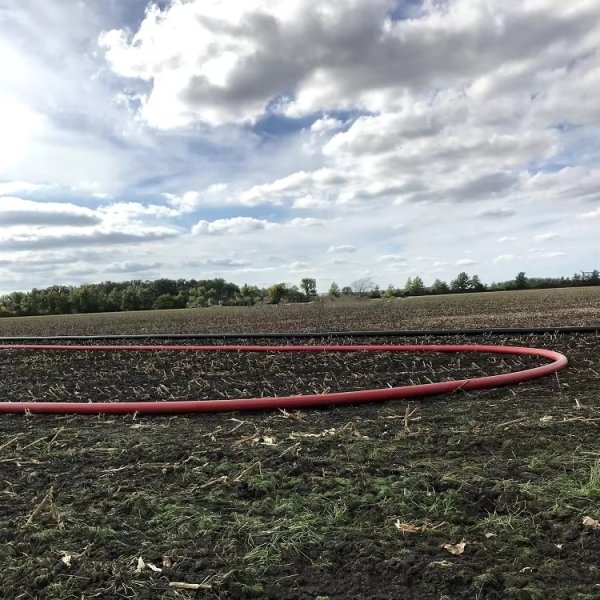

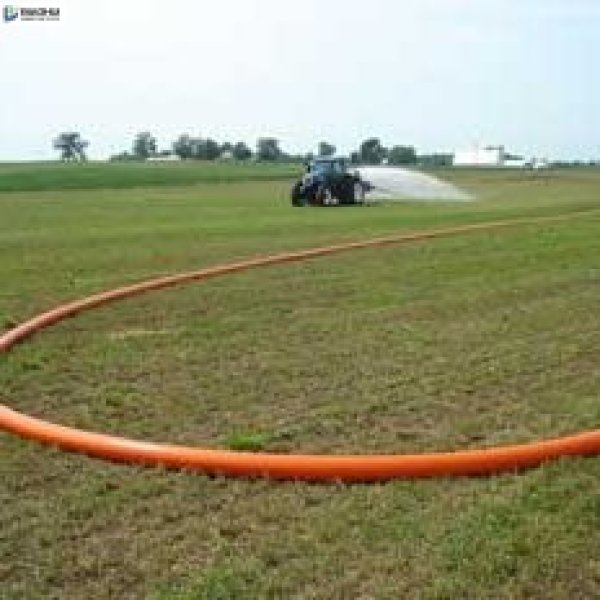

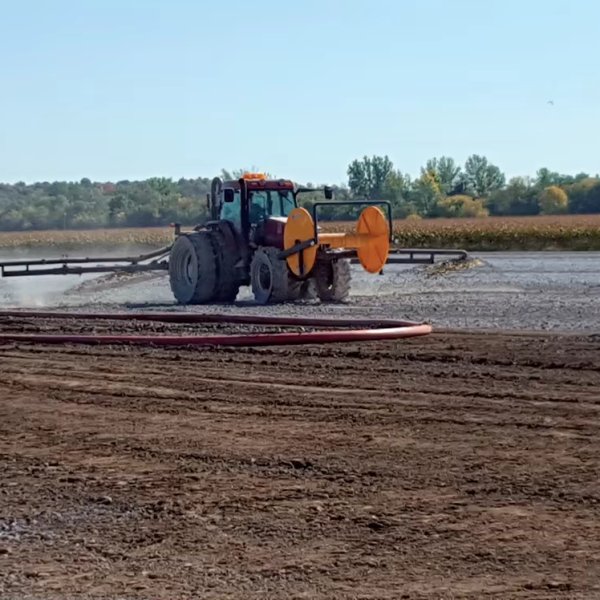

The feces recycling system uses a conveying hose to transport feces from the treatment tank to the edge of the field, and then continuously delivers liquid feces to the spraying nozzle of the field tractor through the hose, thereby achieving rapid and efficient fertilization over a large area.

Industry Hose

Manureflow  PU supply hoses are defferent in structure and PU formula although Manureflow looks similar to ordinary PU covered layflat hoses. Manureflow Pu supply hoses are through-the-weave PU covered layflat hoses.It has the advantages of low elongation, high adhesion, and high working pressure.


Applications

Agriculture manure supply
Supply hose for liquid manure and sludge injection systems
For heavy duty service under toughest conditions

Recommended for Manure Transfer Solutions.

Features

Superior abrasion resistance
Superior performance in adhesion between jackets and tubes or covers
Ultra-high tensile strength
Resistance to oil, fuel and a wide range of chemicals (see resistance table in technical appendix)
Resistance to weathering, UV and ozone
Lightweight and easy to handle compared to material handling hose in rubber
Super low elongation rate

Color

Black (Other color available of request)

ID

Wall Thickness

Weight

Working Pressure

Bursting Pressure

Inch

mm

Inch

mm

lbs/ft

  kg/m

PSI

Bar

PSI

Bar

6

154+2.5

0.17

4.2

1.56

2.33

200

14

600

42

7

178+3.0

0.17

4.2

1.87

2.79

215

15

645

45

8

204+3.0

0.175

4.5

2.3

3.43

215

15

645

45

10

254+3.0

0.18

4.6

3.08

4.59

200

14

600

42
