Resistant To High Pressure, High Temperature, And Wear, With Strong Flexibility—Widely Applied In Coal, Petrochemicals, Metallurgy, Mining, Construction, Electricity, And More.

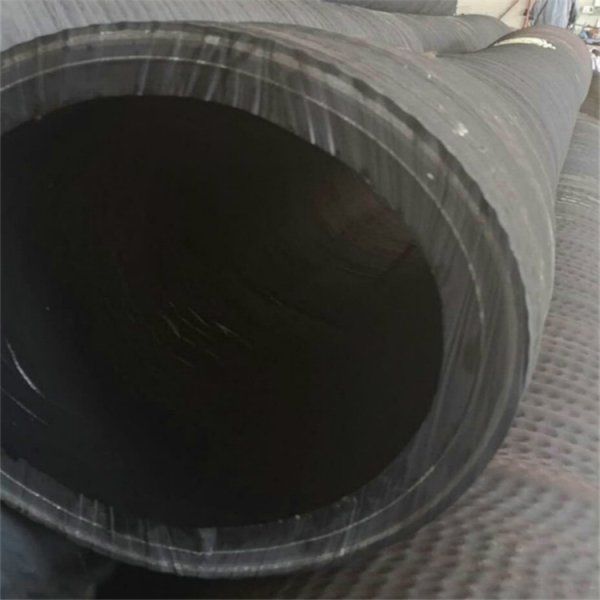

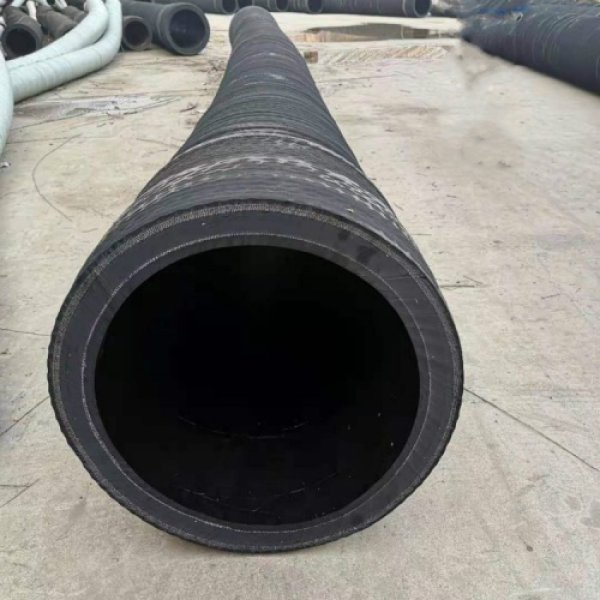

Mining Slurry Hose. Pure Gum Liner. Tough, rubber, to replace inflexible steel tube. The easy hand and reusable flange system make installation a snap. Absorbs system vibration and saves wear. Compensates thermal expansion and contraction and reduces noise. Flexible connection for hard piping misalignment.
Mining Slurry Hose Construction:
Tube:Black NR/SBR
Reinforce: Multi ply synthetic fabric with wire helix.
Cover: Black corrugated NR/SBR, abrasion and weather proof.
Application:
It isto handle abrasive and viscous sluries in mine and quary. They can also be used to handle dry matenials such as sand, gravel and grains, Theexternal bolt on the flanges allow for easy operation and free flow.
Characteristic:
Rugged hose to replace steel piping system
Absorb system vibration and saves wear
Can be cut to length and assembled on-site for quick install
Split flange
Temperature:
-40Cto+82C(-40Fto+180F)
Item | ID | OD | W.P | B.P | Lenght | ||||
Inch | mm | mm | bar | psi | bar | psi | m | Ft | |
051 | 51 | 2" | 79 | 10 | 150 | 30 | 450 | 61 | 200 |
076 | 76 | 3" | 118 | 10 | 150 | 30 | 450 | 61 | 200 |
102 | 102 | 4" | 137 | 10 | 150 | 30 | 450 | 61 | 200 |
127 | 127 | 5" | 167 | 10 | 150 | 30 | 450 | 61 | 200 |
152 | 152 | 6" | 196 | 10 | 150 | 30 | 450 | 12 | 40 |
203 | 203 | 8" | 255 | 10 | 150 | 30 | 450 | 12 | 40 |
254 | 254 | 10" | 302 | 10 | 150 | 30 | 450 | 12 | 40 |
305 | 305 | 12" | 349 | 10 | 150 | 30 | 450 | 12 | 40 |
355 | 355 | 14" | 416 | 10 | 150 | 30 | 450 | 12 | 40 |
