Resistant To High Pressure, High Temperature, And Wear, With Strong Flexibility—Widely Applied In Coal, Petrochemicals, Metallurgy, Mining, Construction, Electricity, And More.
Construction
Cover and liner: High quality TPU
Reinforcement: High tenacity synthetic yarn
Technical Parameters
Color: Black or as required
Size: 16 inch(DN400)
Length: 200m(660ft) or as required
Temperature: -50°C～+80°C(-60°F to 176°F )

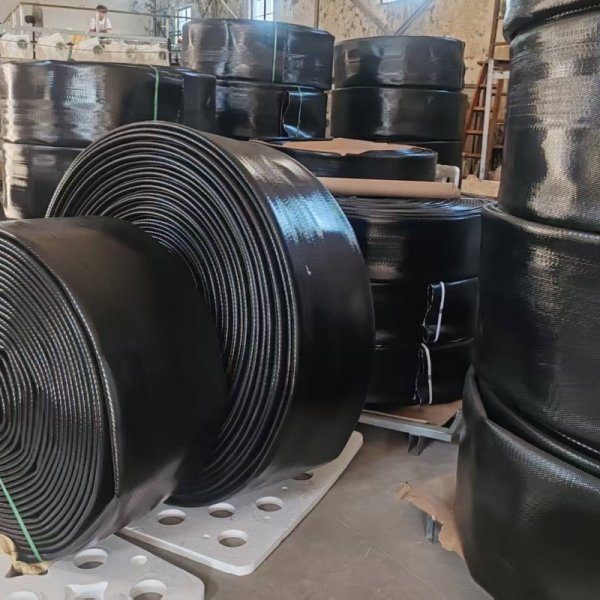

TPU Layflat Hose is made from extruded thermoplastic polyester based polyurethane (TPU) with excellent wear & tear properties. It’s reinforced with circular woven filament polyester yarn.
It is also resistant to many chemicals and its superior construction makes it light in weight and permits it to be made in very long length even in larger diameters. The interlocked reinforcement weaves ensure the extension in hose length is minimized when the hose is pulled or pressurized – which also keeps “snaking” of the hose to a minimum.
Features
High pressure, abrasion resistant, extremely tough, oil and chemicals resistance, fast deployment and retrieval, excellent flow rates, long service life
Application
Long-distance water supply in fire fighting, emergency water removal during floods, industrial large volume water discharge, irrigation supply and frac solution

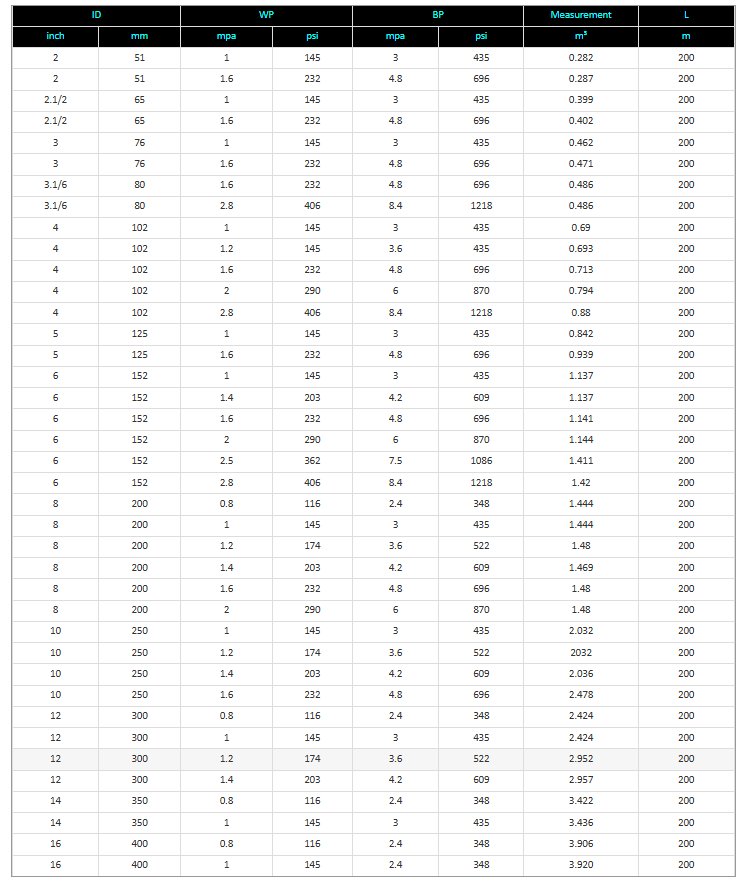

Specifition：
