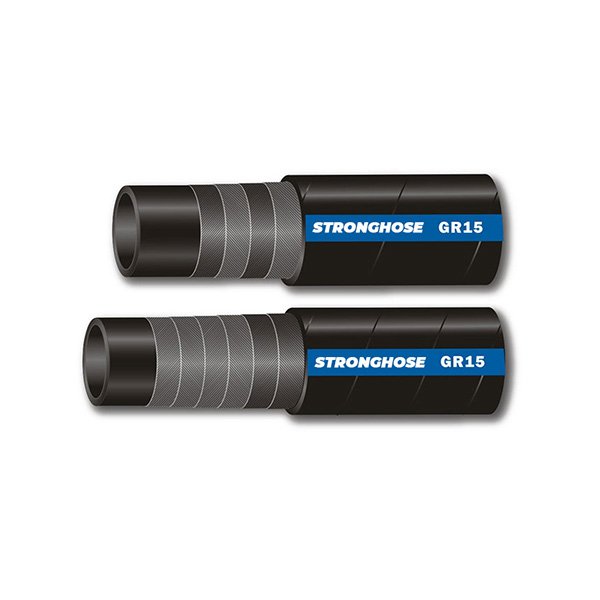

GR15(SAE 100R15)Hydraulic Hose

Inner Tube: oil-resistant synthetic rubber.
Reinforcement: a braid of textile material over the inner
tube and four or six spiral plies of heavy steel wire
wrapped in alternating directions.
Cover: weather- and oil-resistant synthetic rubber
Temperature Range: -40℃ to +121℃.
Main Applications: very high-pressure applications subject to surge or flexing, such as construction equipment, mining, and the high-performance industrial market

Applicable Standards: ISO 3862 R15, EN 856 R15, SAE J517 100R15.
