Resistant To High Pressure, High Temperature, And Wear, With Strong Flexibility—Widely Applied In Coal, Petrochemicals, Metallurgy, Mining, Construction, Electricity, And More.
Main application to the steel smelting, non-ferrous metal smelting, power plant, shipyard etc the high temperature areas that need to be protective of cable, hose and pipes.
Construction:

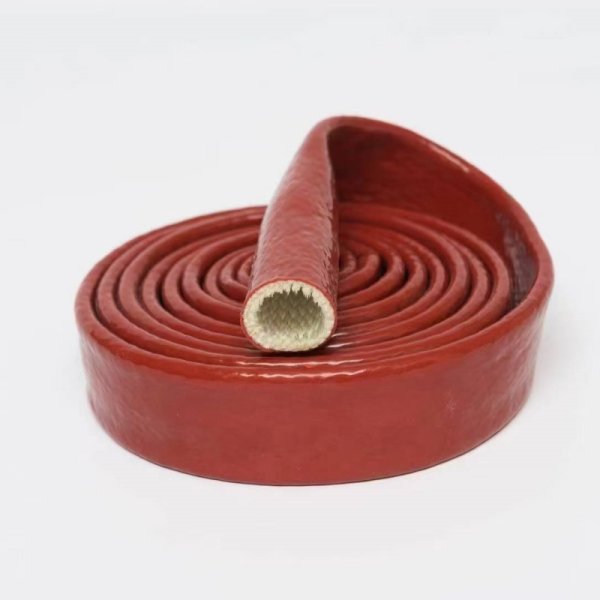

The oil line protection sleeve rust red silicone rubber coated fiberglass sleeving is braided with high purity thickened non-alkali fiberglass and then coated by silicone resin.
Application:
Main application to the steel smelting, non-ferrous metal smelting, power plant, shipyard etc the high temperature areas that need to be protective of cable, hose and pipes.
Temperature: -29ºC (-20 ºF ) to 80ºC(+176 ºF)
Characteristics:
1.This casing pipe is made with glass fiber and covered with thick iron oxide red silica gel.
2.Fire resistant , flame retardant, heat insulation, insulation, anti-aging.

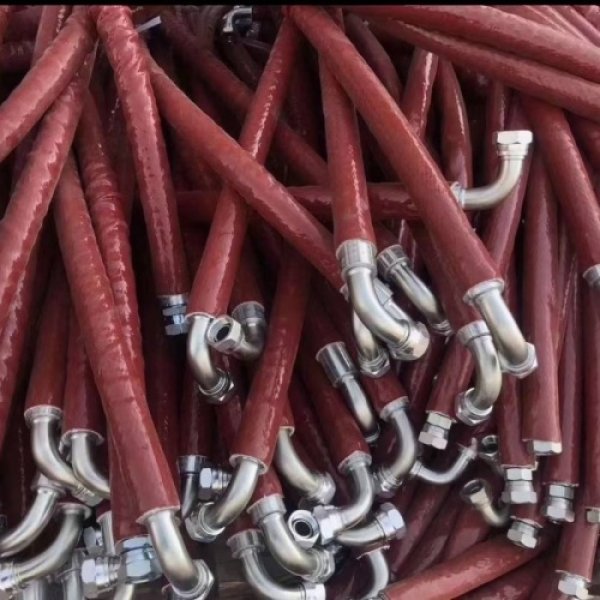

3.Protect hoses and lines from molten metals, slag, welding splatter, electrical or grinding sparks and contamination.
| Item Code | I.D | Thickness | Length | ||||||||
| mm | mm | m | |||||||||
| IF-5 | 5.5 | 1.6 | 15 | ||||||||
| IF-6 | 6.5 | 1.6 | 15 | ||||||||
| IF-8 | 8.5 | 1.8 | 15 | ||||||||
| IF-10 | 10.5 | 2.0 | 15 | ||||||||
| IF-12 | 12.5 | 2.0 | 15 | ||||||||
| IF-15 | 15.5 | 2.1 | 15 | ||||||||
| IF-20 | 20.5 | 2.4 | 15 | ||||||||
| IF-25 | 25.5 | 2.6 | 15 | ||||||||
| IF-30 | 30.5 | 2.9 | 15 | ||||||||
| IF-35 | 35.5 | 3.1 | 15 | ||||||||
| IF-40 | 40.5 | 3.4 | 15 | ||||||||
| IF-45 | 45.5 | 3.4 | 15 | ||||||||
| IF-50 | 51 | 3.6 | 15 | ||||||||
| IF-55 | 56 | 3.7 | 15 | ||||||||
| IF-60 | 61 | 3.8 | 15 | ||||||||
| IF-65 | 66 | 3.8 | 15 | ||||||||
| IF-70 | 71 | 4.0 | 15 | ||||||||
| IF-75 | 76 | 4.1 | 15 | ||||||||
| IF-80 | 81 | 4.3 | 15 | ||||||||
| IF-85 | 86 | 4.3 | 15 | ||||||||
| IF-90 | 91 | 4.5 | 15 | ||||||||
| IF-100 | 101 | 5.0 | 15 |
