Polyurethane Flexible Connectors

Polyurethane flexible connectors
Mainly related to the operating conditions of the application, including:
One is the characteristics of conveying materials: temperature resistance, wear resistance, corrosiveness, and flammability. For example, silicone cloth soft connectors can withstand high temperatures of over 200 degrees, but their wear resistance is far inferior to polyurethane flexible connectors. When the material is flammable, conductive materials are preferred; When the material is highly corrosive, polytetrafluoroethylene (PTFE) connectors can be considered.

Polyurethane flexible connectors
Polyurethane flexible connection products are mainly divided into throat clamp flexible connection, quick installation flexible connection, and welding type, widely used in various industries such as flour, fertilizer, medicine, food additives, etc. For the soft connection parts of powder and bulk processing and conveying systems, the main materials include PU, silicone, rubber, etc.

Polyurethane flexible connectors

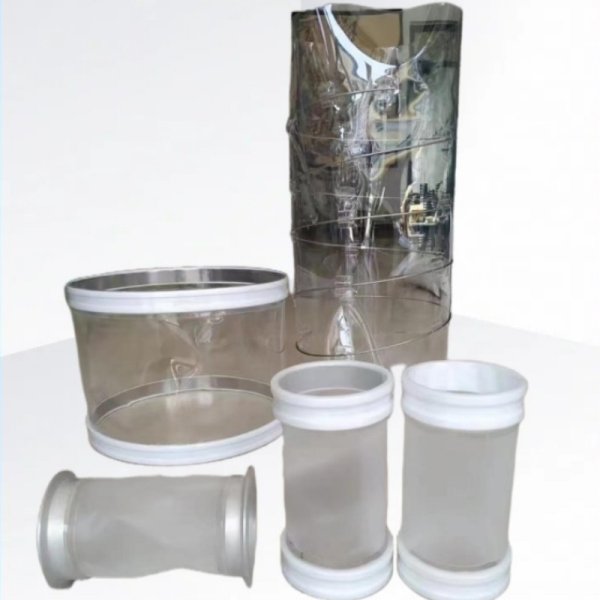

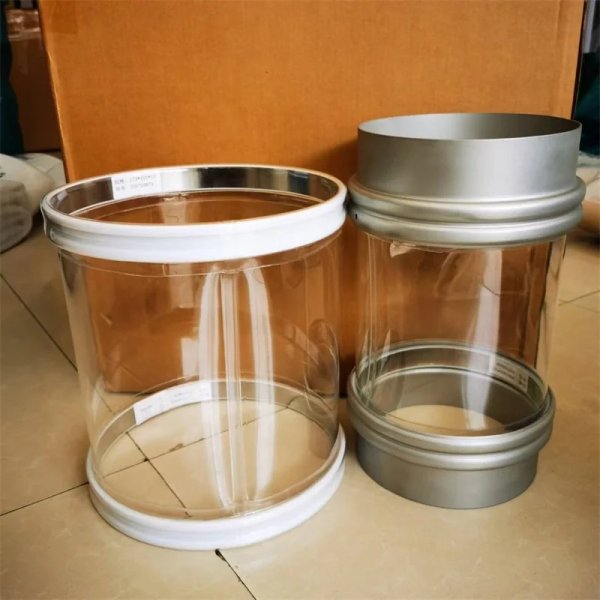

Transparent, easy to observe material flow, extremely wear-resistant, tear resistant, oil resistant, with a lifespan more than 10 times that of ordinary rubber, and can be of any diameter size.

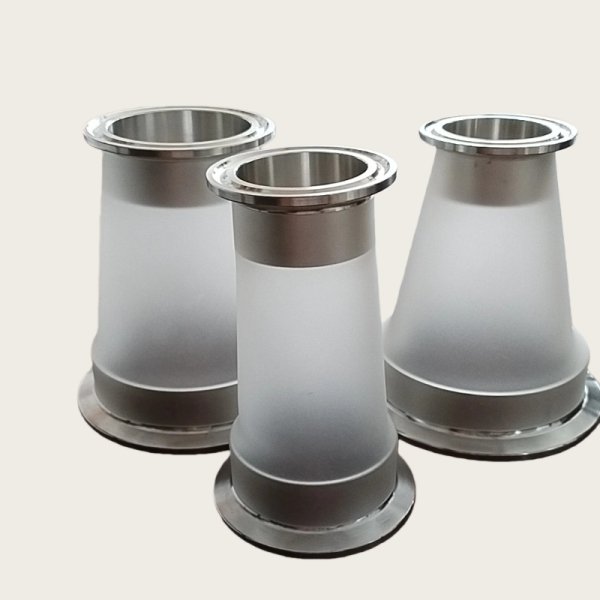

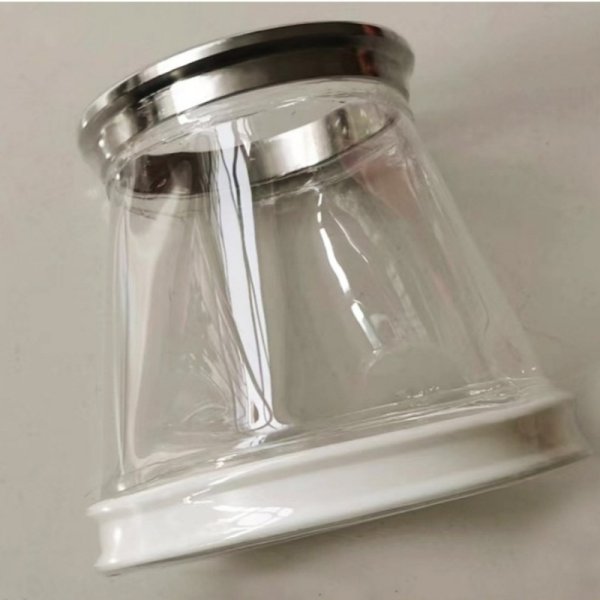

We can also customize various shapes according to customer needs: straight pipe, cone, square, with flange, etc.

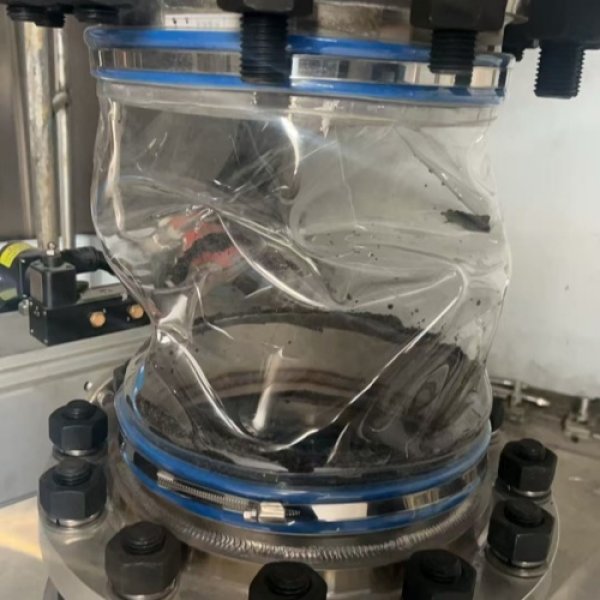

Transparent polyurethane flexible connectors, also known as TPU flexible connectors, have a thickness ranging from 0.2 millimeters to 2 millimeters, but commonly used are 0.3 millimeters and 1 millimeter more. For example, in the soft connection of weighing systems, a material with a thickness of 0.3 millimeters is generally used to avoid weighing errors. For example, in vibrating screens and dryers, a material with a thickness of 1 millimeter is generally used to ensure both toughness and flexibility. Soft connections can be customized to any size or made into square shapes with flanged edges, which cannot be compared to silicone soft connections.
Transparent polyurethane flexible connectors are divided into food grade flexible connectors and non food grade flexible connectors according to their materials.

Food grade flexible connectors are generally made of transparent materials, which are relatively soft. Food grade flexible connectors have better transparency and are made of silicone material from Dow Corning in the United States. The toughness, wear resistance, and temperature resistance are much stronger than those in China. The commonly used diameters are 159/219/273/377, and the length can also be customized, but it is generally not too long, not exceeding 500 millimeters. Corrugated flexible connectors can also be made.
